Contec CMS600P2 Portable Laptop Ultrasound Scanner with Convex and Endovaginal Probes

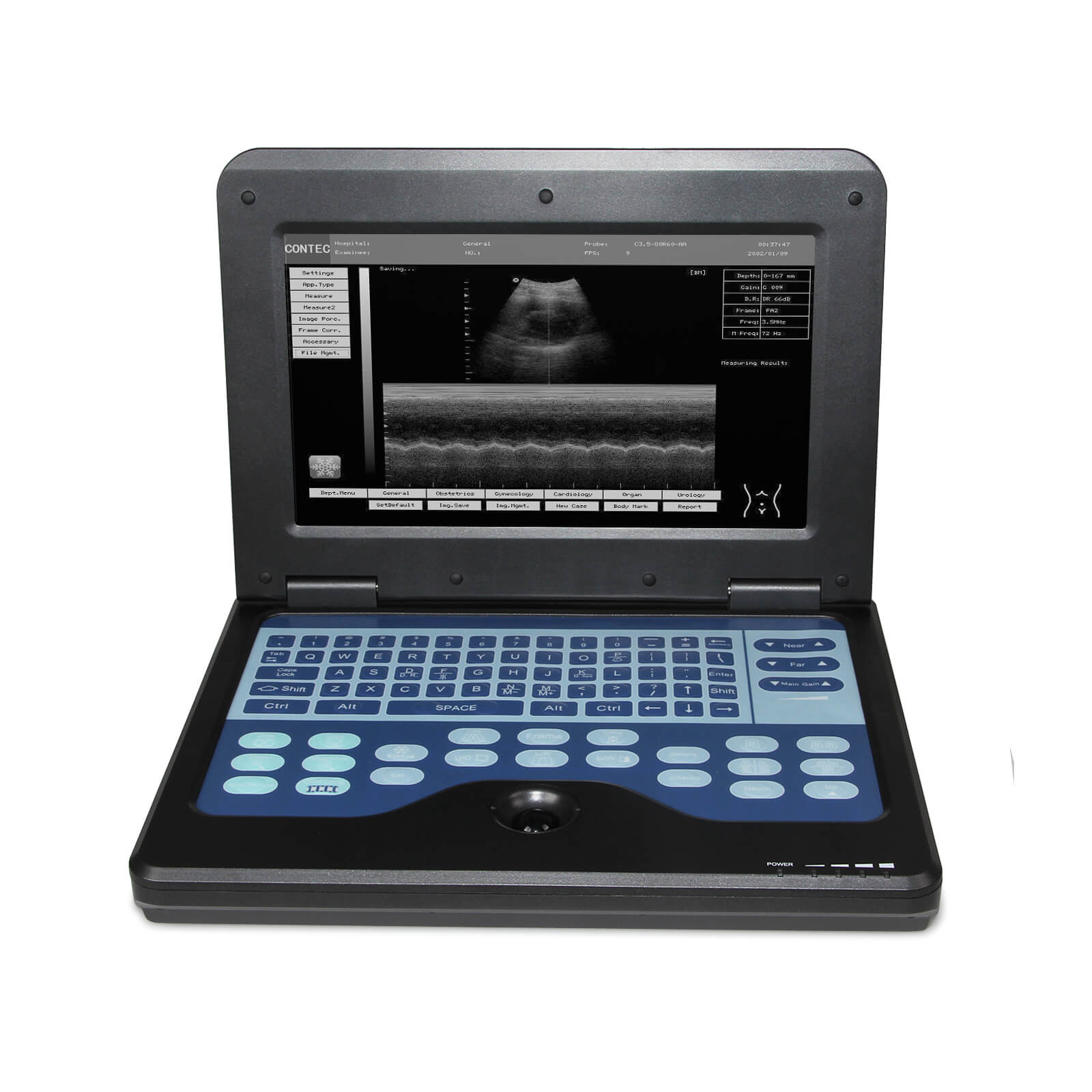

The CMS600P2 is a compact, full-digital B-ultrasound diagnostic system designed for clinicians who need hospital-quality imaging in a portable package. Housed in a notebook-style chassis, this ultrasound scanner combines powerful processing, an embedded Linux operating system, and a built-in battery to deliver reliable performance at the point of care. Its 10.1-inch TFT LCD display, touch-enabled folding keyboard, and shortcut trackball enable fast, one-handed operation—so you can move quickly from image capture to interpretation and documentation.

Why the CMS600P2 stands out

• Notebook portability with real power: Ultra-light weight (about 2.3 kg with probe) and a compact form factor mean you can carry a complete diagnostic system to clinics, wards, or field deployments without sacrificing image quality.
• Linux embedded OS with expandability: A flexible, transplantable platform supports advanced imaging features and future software updates without compromising stability.
• Advanced imaging chain for superior clarity: Full digital beam-forming, real-time dynamic aperture, dynamic receive apodization, and real-time receive focusing work together with frame correlation and modern image processing to produce sharper, more reliable images.
• Rich, clinically diverse software packages: Built-in modules for obstetrics, gynecology, cardiology, urology, and other small parts imaging, ensuring the system covers a wide range of diagnostic needs in one device.
• Versatile data management and reporting: Intuitive image management, automatic reports, and easy print/export options streamline documentation and patient records.
• Flexible probe ecosystem: A robust array of probes supports a wide range of examinations—from routine abdominal and obstetric imaging to endovaginal assessments and cardiac workups.

What’s included and compatible probes

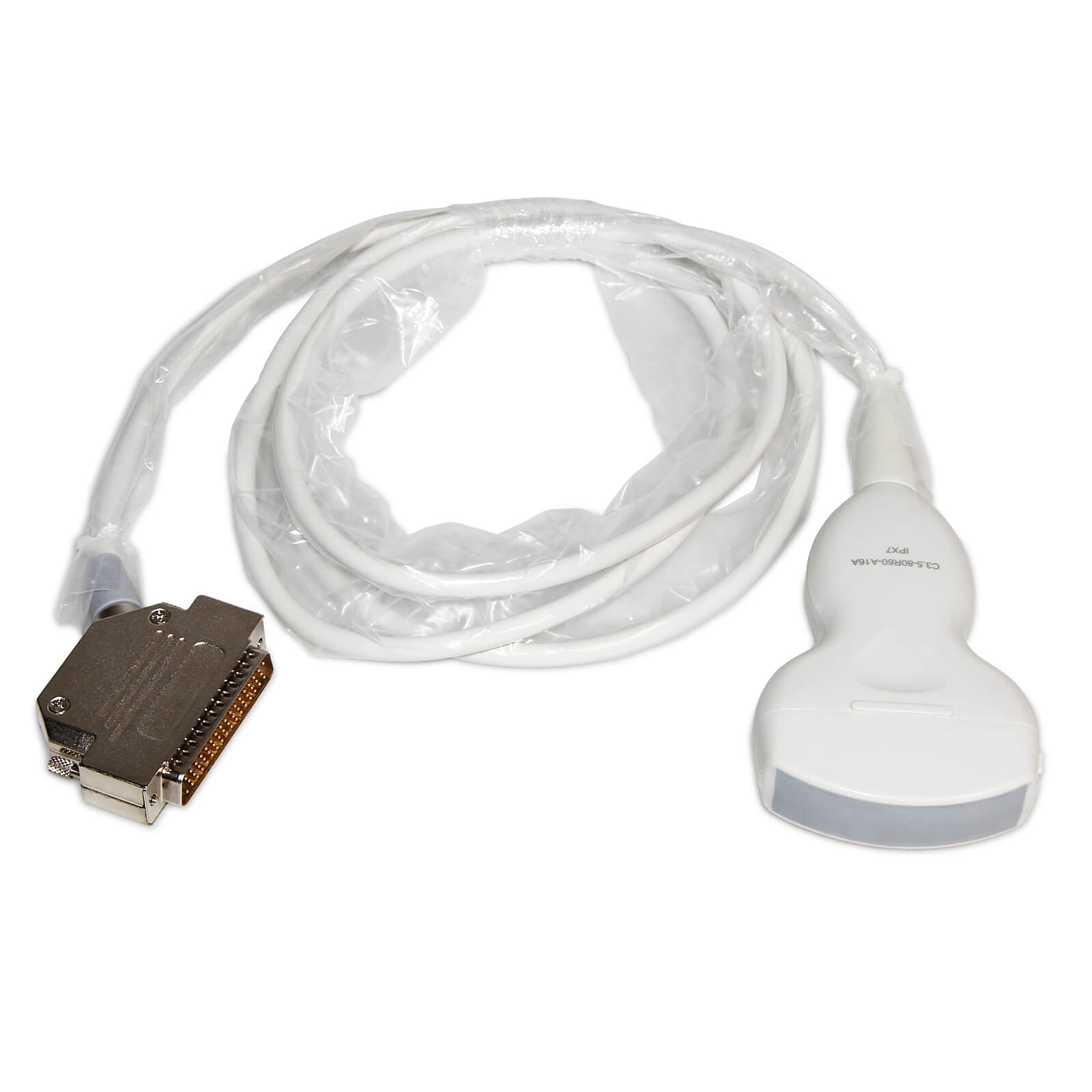

• 3.5 MHz convex probe; 2.0–5.0 MHz operation range

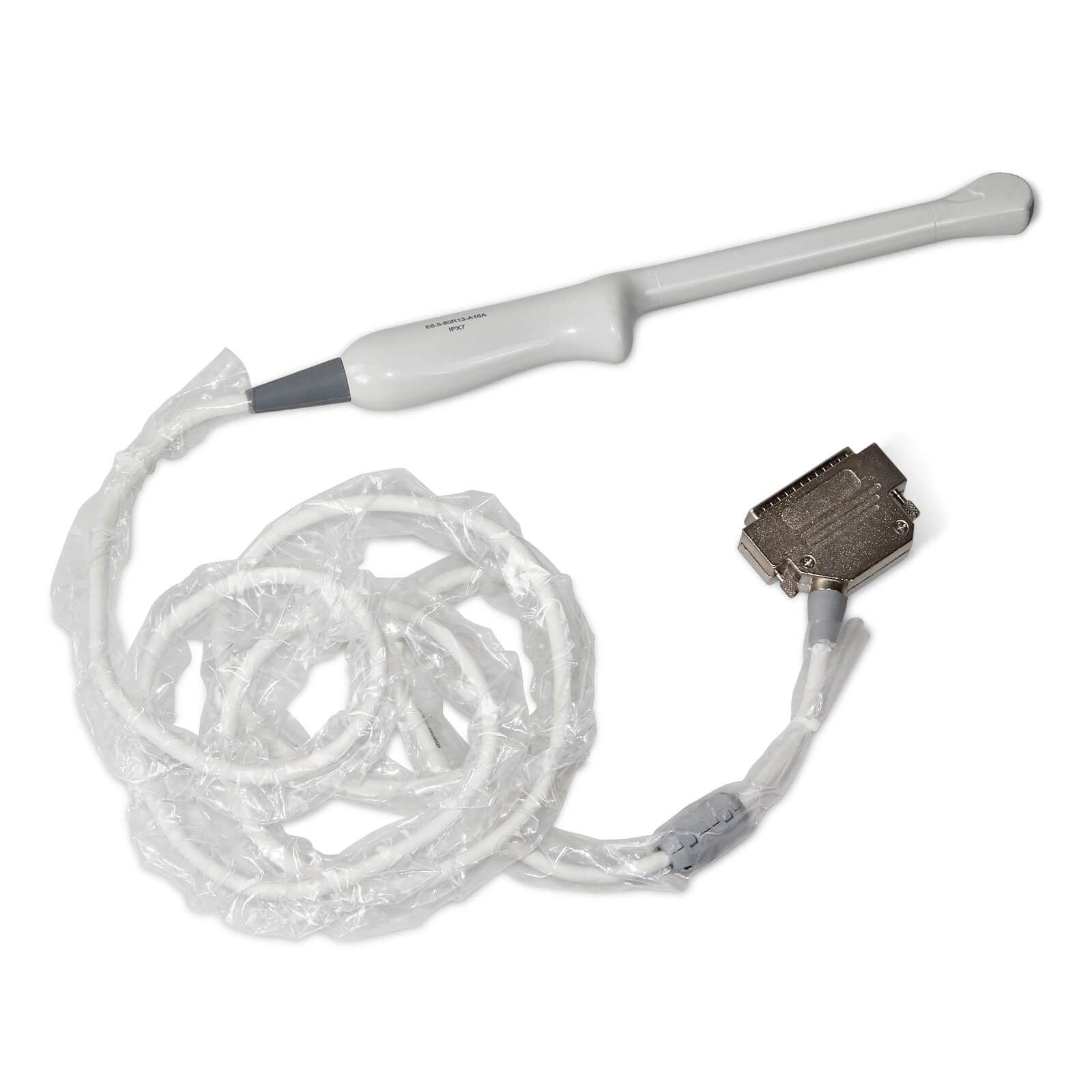

• 6.5 MHz endovaginal probe for detailed pelvic assessment
• 7.5 MHz linear probe (5.0–10.0 MHz), 3.5 MHz micro-convex cardiac probe (2.0–5.0 MHz)
• Multiple probes available to tailor imaging to the patient and clinical scenario, from obstetrics and gynecology to detailed cardiovascular and small-parts exams

Imaging performance and user experience

• 10.1-inch monitor with B, B/M, and M modes; 256-level gray scale for nuanced tissue differentiation
• Tissue harmonic imaging, gamma correction, and a configurable image flip (up/down, left/right) for fast alignment with examiner preference
• Independent adjustment of near gain, far gain, and total gain to optimize contrast in challenging patients
• Distance, circumference, area, volume, angle, ratio, slope, and more—configurable with race-appropriate equations; automatic measurements for standardized reporting
• Puncture guide, histogram analysis, and a range of measurement formulas that you can tailor to your clinic’s protocols
• Built-in capabilities to print and export reports, plus USB storage for portable patient records
• Supports Chinese and English UI and input with a straightforward management interface for quick onboarding

Clinical workflows and use cases

Designed for everyday clinical reality, the CMS600P2 accelerates diagnosis across diverse specialties:

• Safe, accurate fetal assessment, placental localization, and pelvic imaging with consistent measurement workflows
• Cardiac screening and targeted imaging of thyroid, breast, and other small structures with dedicated measurement tools
• High-resolution pelvic imaging with endovaginal probes for early detection and monitoring
• Real-time imaging support for procedures requiring puncture guidance
• A portable, battery-powered solution that maintains hospital-grade image quality where space and power are limited

Connectivity, data management, and updates

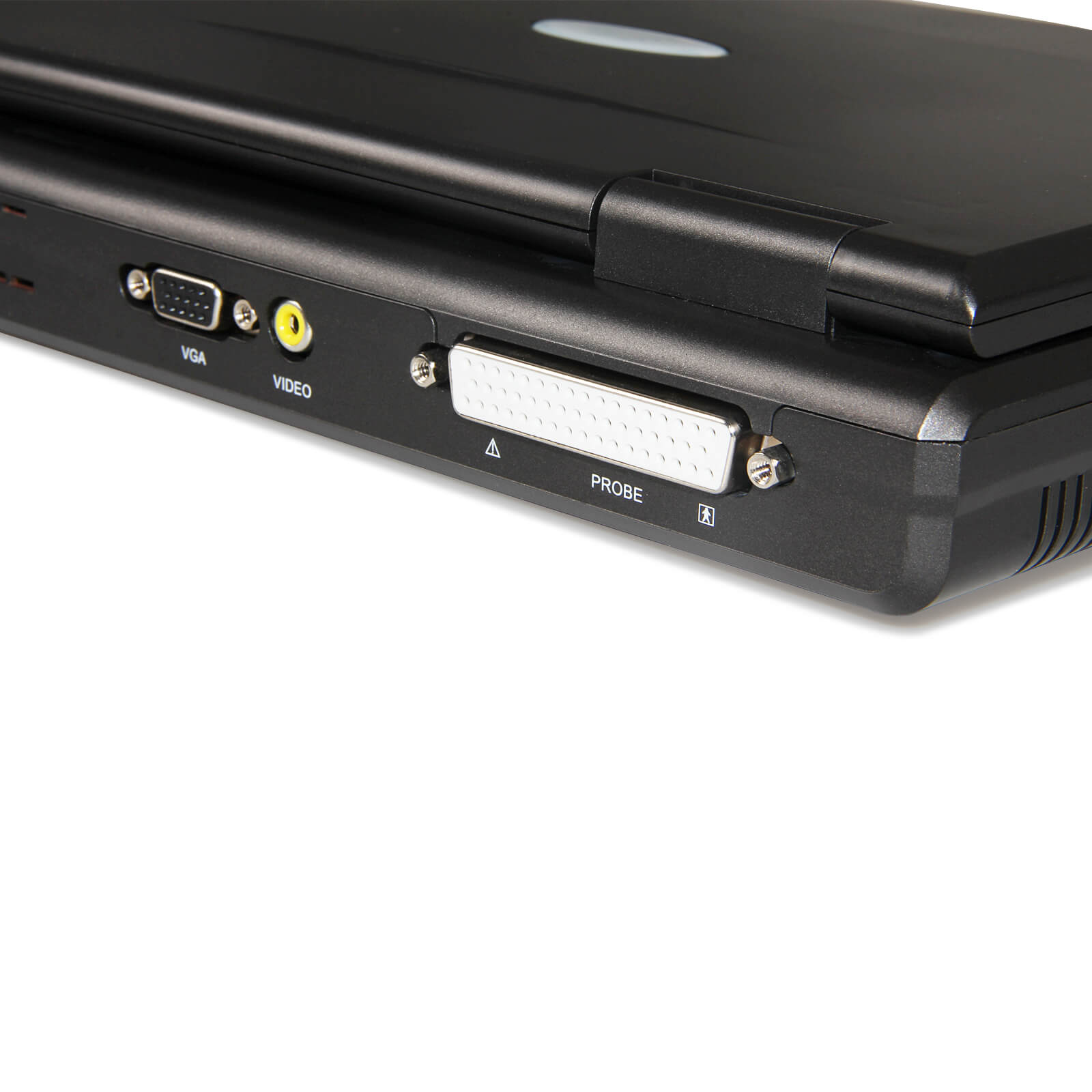

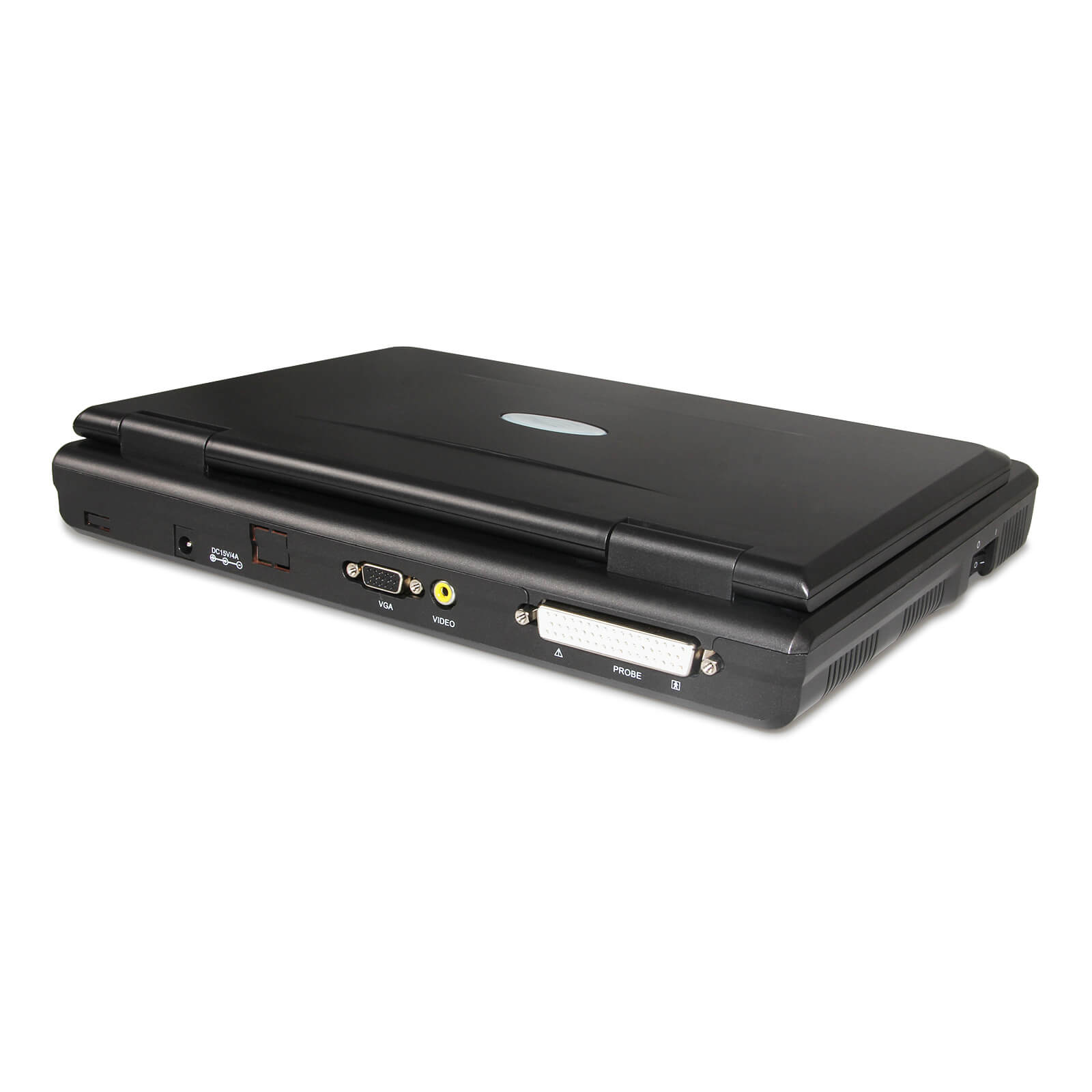

• USB, Video, and VGA outputs for seamless integration with printers and displays
• External USB storage support and USB-based software updates to keep imaging capabilities current
• Automatic report generation with the ability to print or export images and measurements for patient records

Delivery, availability, and shipping

The Contec CMS600P2 is designed for flexible distribution. It ships to US addresses from a USA-based warehouse, with international orders fulfilled from China as needed. This dual-channel approach helps balance delivery speed and cost while ensuring you receive a device that matches your regional requirements.

Technical snapshot

• B, 2B, 4B, B/M, M
• 256 levels
• 292 mm × 232 mm × 45 mm
• 2.3 kg (including probe)
• Chinese and English interface
• Embedded Linux

With the CMS600P2, you don’t have to compromise between portability and performance. Its integrated battery, wide probe portfolio, and rich clinical software enable precise, confident imaging across a broad spectrum of patients and settings—making it a compelling choice for clinics that value speed, accuracy, and adaptability in a single, portable ultrasound solution.
