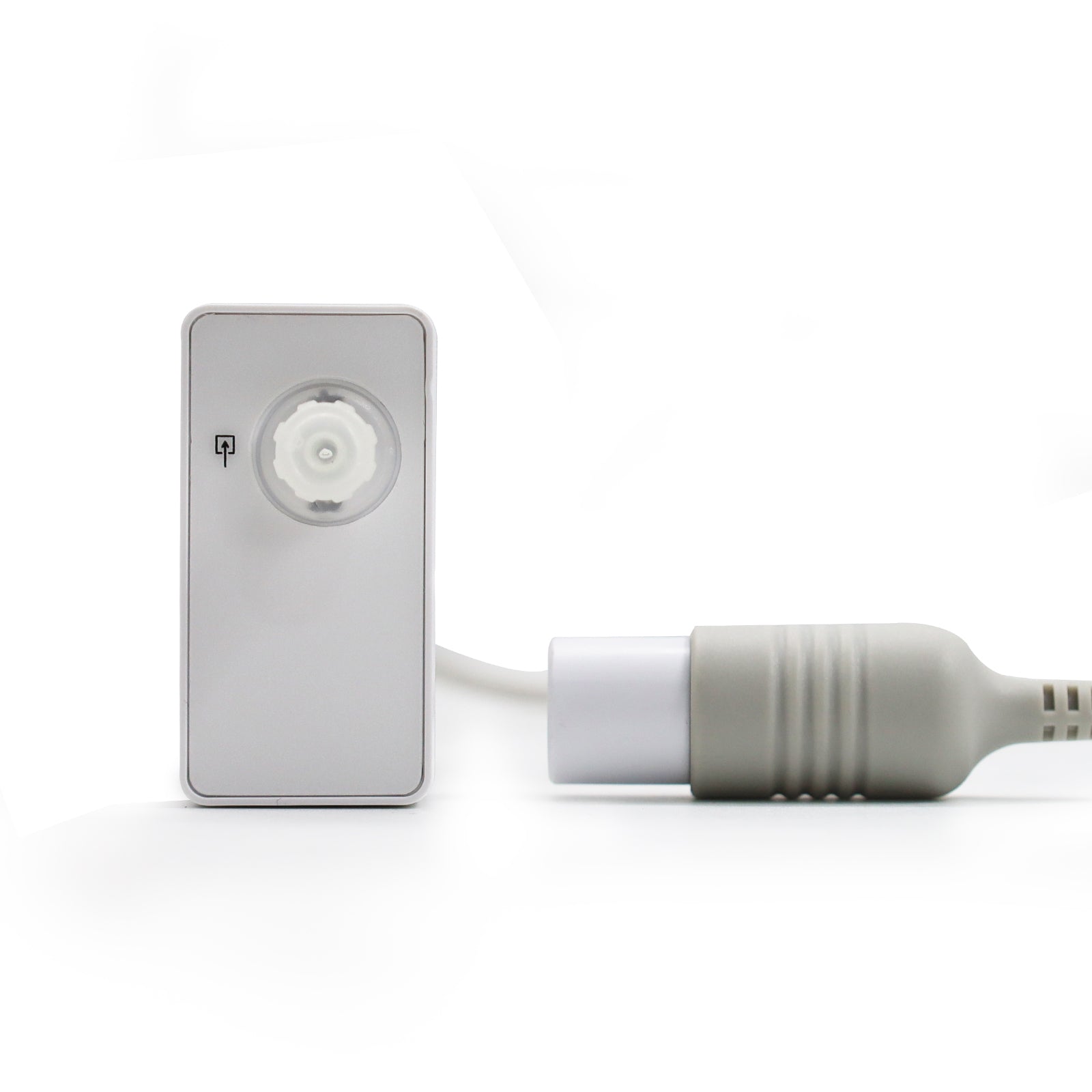

ETCO2 Capnograph CO2 Module Cable for CONTEC Brand Patient Monitor

This ETCO2 capnography cable is engineered to pair with CONTEC monitors using the CO2-M01 sidestream module, delivering reliable, real-time respiratory gas analysis across adults, children, and neonates. Designed for clinical settings—from the operating room to the ICU and emergency departments—it provides straightforward, accurate CO2 monitoring that clinicians can depend on for timely decisions.

Why this cable stands out

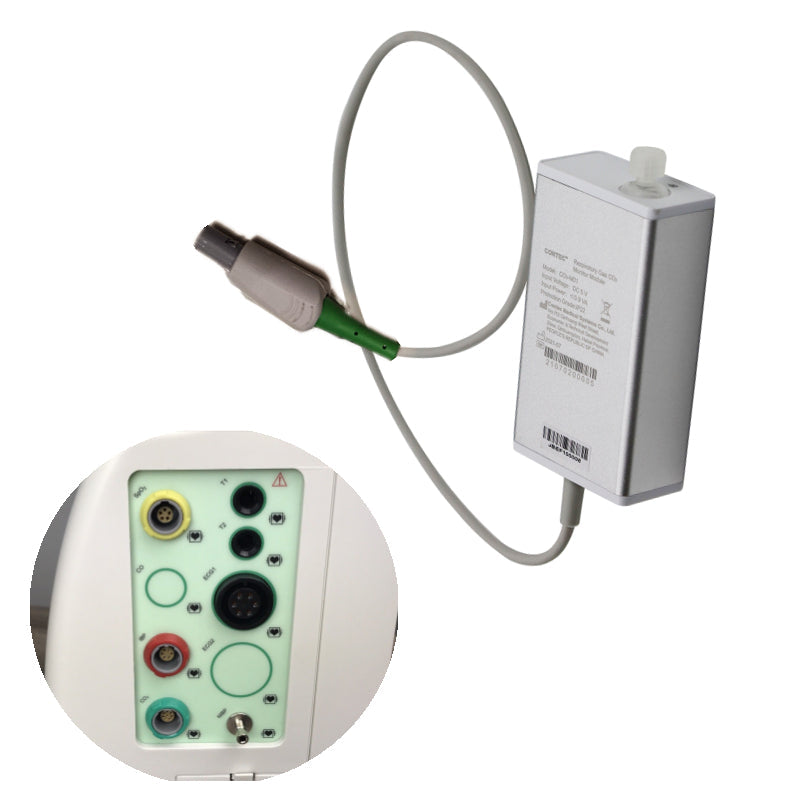

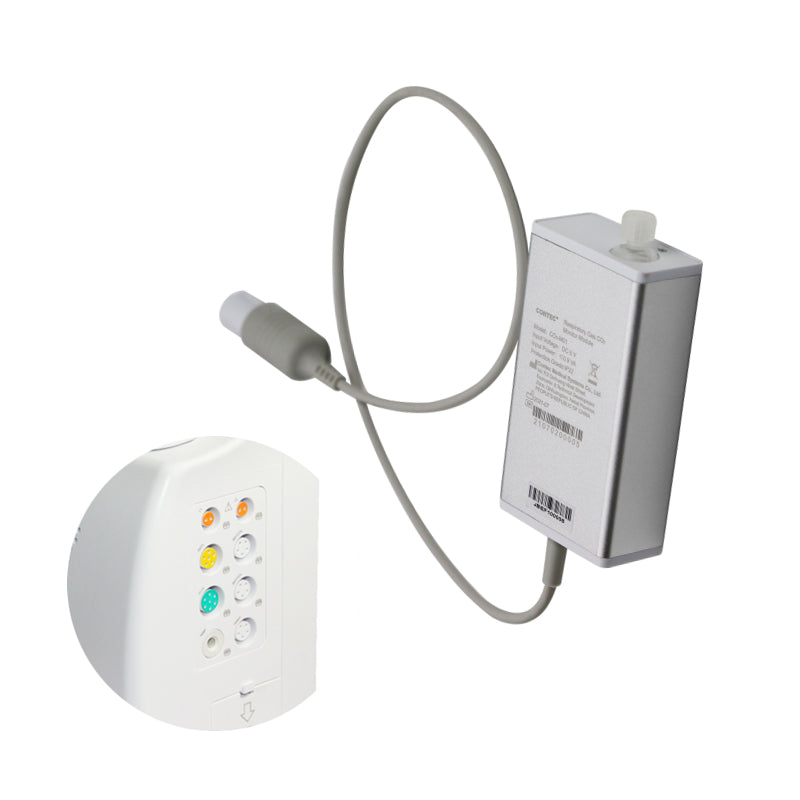

• Broad monitor compatibility: Connects with a range of CONTEC CMS models including CMS6800, CMS6000, CMS6000C, CMS7000, CMS8000, CMS9000, and CMS9200. Interface version compatibility ensures you select the correct cable for your specific monitor, reducing setup time and avoiding misconnection.
• Accurate, multi-parameter capnography: Continuously measures CO2 concentration and calculates End-tidal CO2 (EtCO2), Inspired CO2 (InsCO2), and Airway Respiratory Rate (AwRR). This gives clinicians a complete snapshot of a patient’s ventilation status in one view.
• Three-unit flexibility: Display and record CO2 in mmHg, kPa, or percent—so you can match your unit preferences or charting standards without sacrificing precision.
• Wide, clinically relevant ranges: CO2 measurement from 0 to 150 mmHg with detailed accuracy across ranges, plus a respiratory rate monitoring span from 2 to 150 rpm. The device supports rapid changes in patient status, such as during anesthesia induction or CPR.

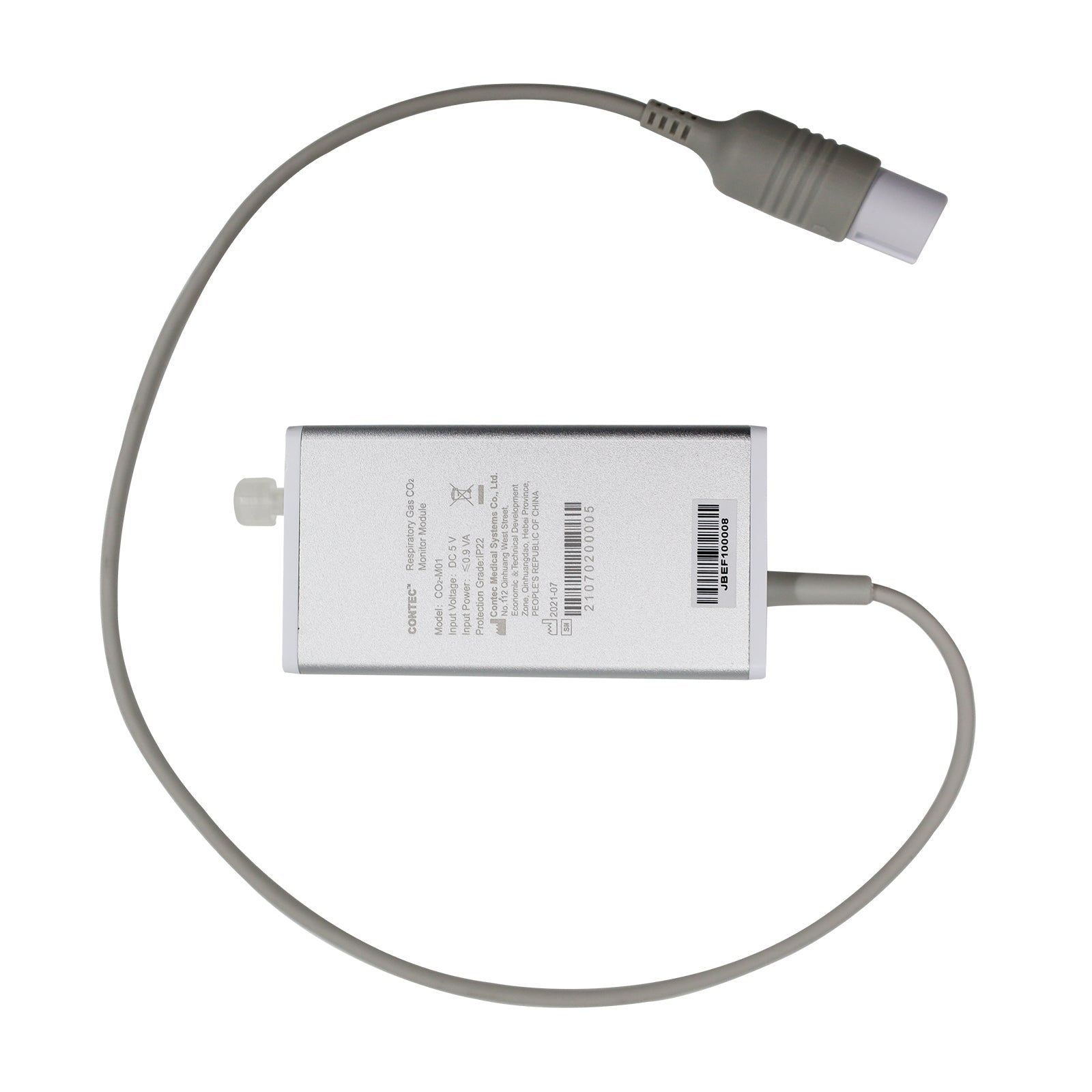

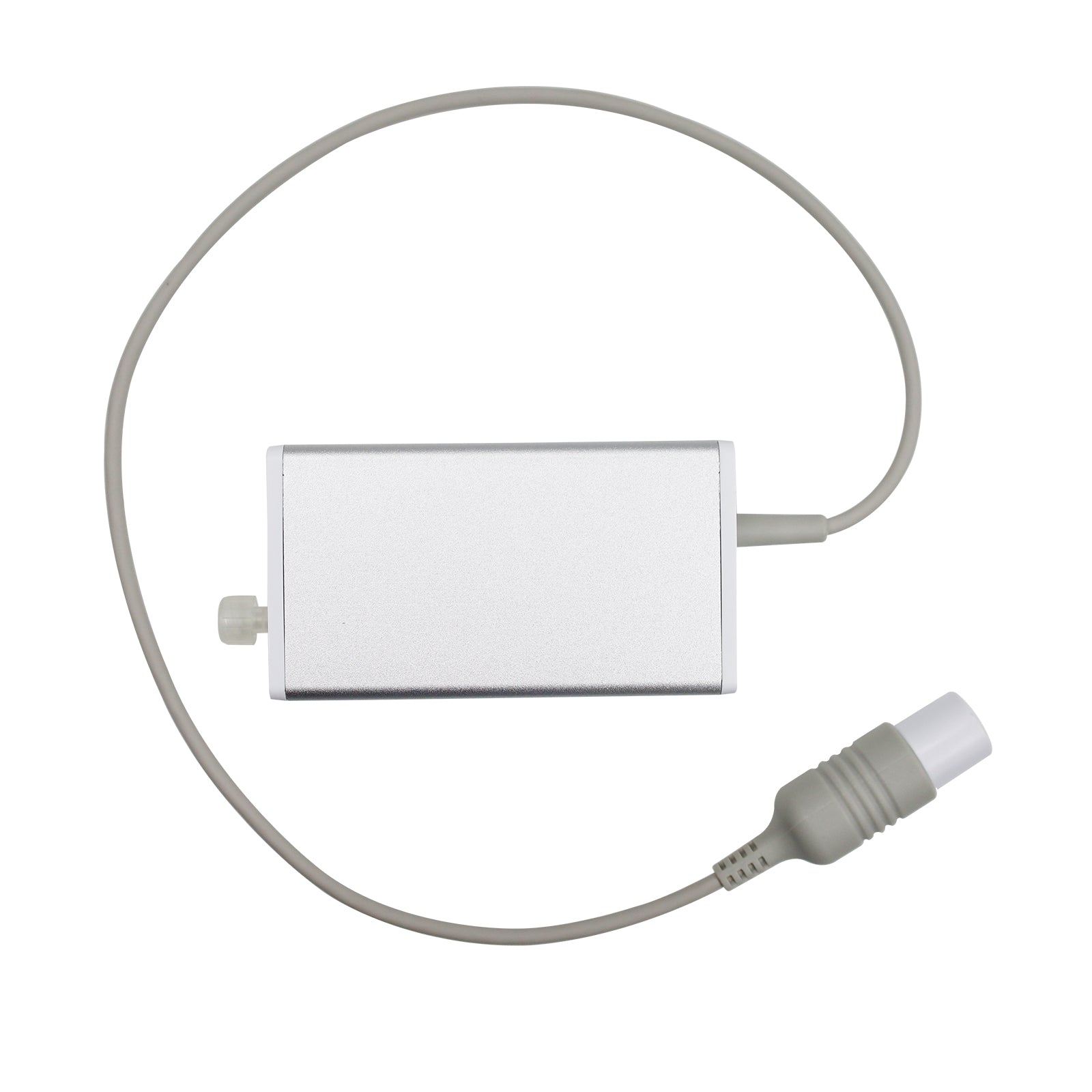

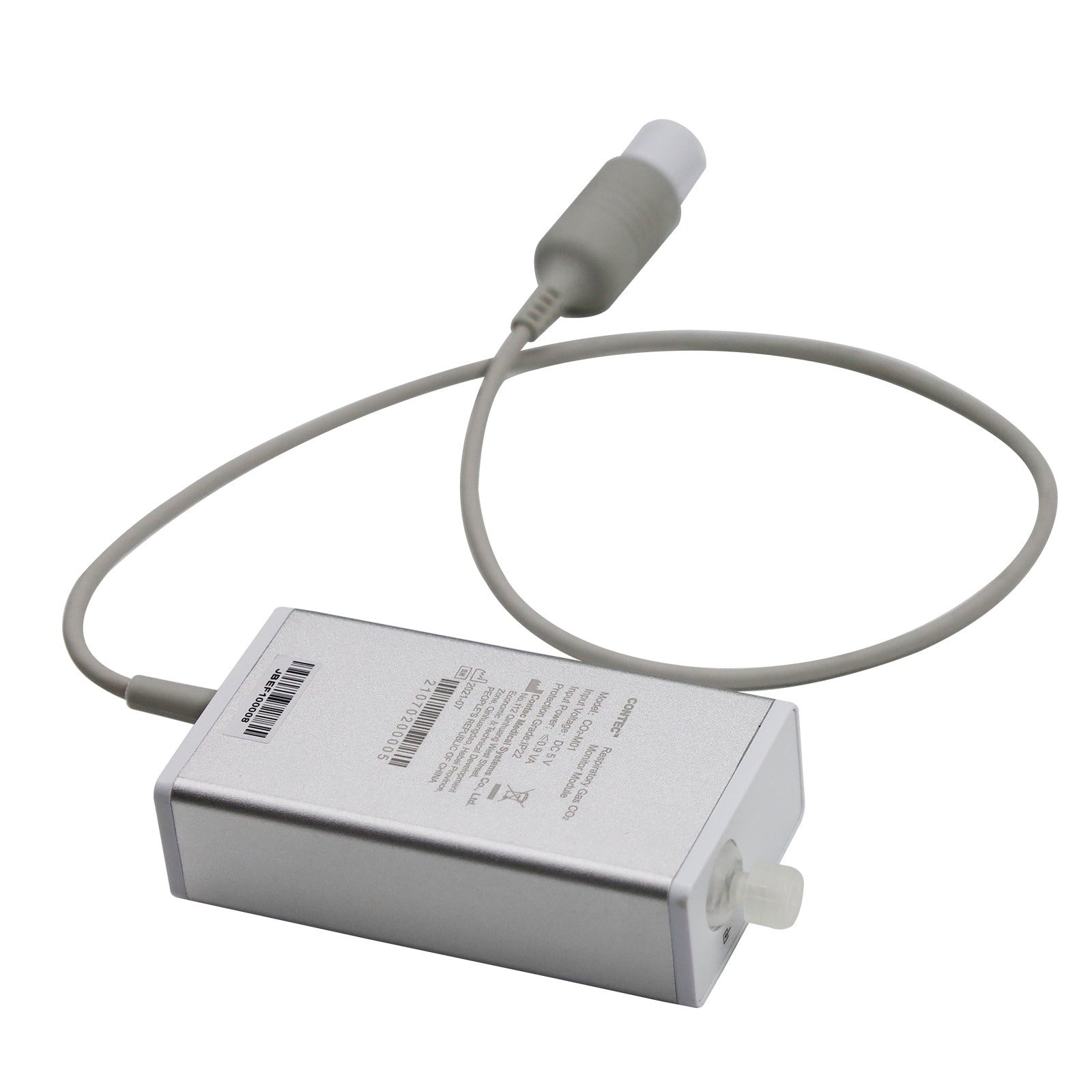

• Compact, lightweight design: Measurements and data are delivered through a compact module that weighs just 141 g with dimensions of 103 mm (L) × 69 mm (W) × 39 mm (H), making it easy to position in crowded or sensitive clinical environments.

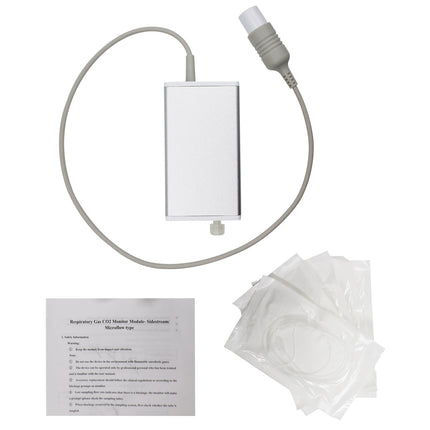

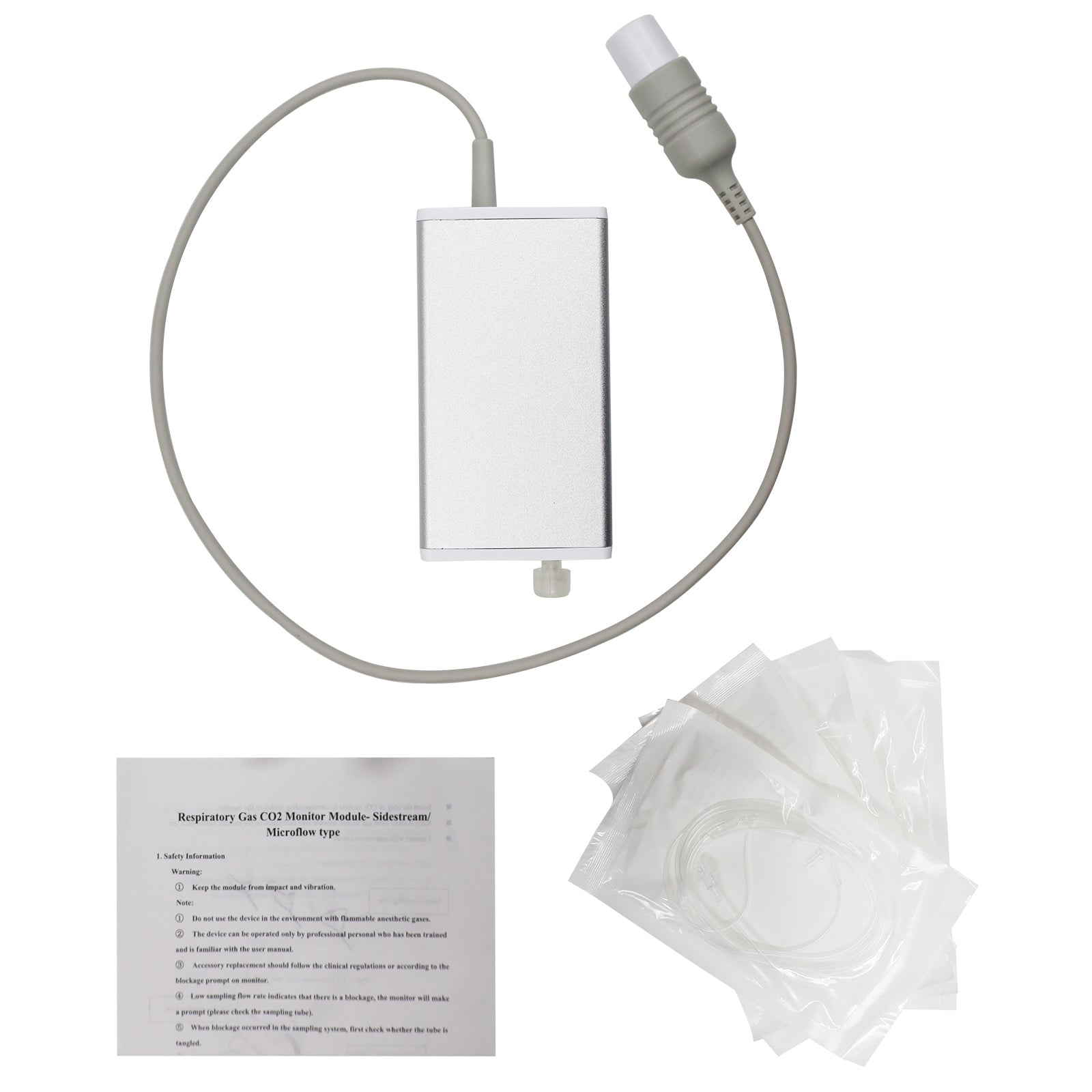

• Disposable sampling tubes for safety: The sampling tube is intended for single use. Replace after every procedure or after 30 minutes of continuous use to prevent water ingress and potential equipment damage.

Key specifications at a glance

• 0–150 mmHg
• CO2 measurement accuracy (typical): 0–40 mmHg ±2 mmHg; 41–70 mmHg ±5% of reading; 71–100 mmHg ±8% of reading; 101–150 mmHg ±10% of reading
• Respiratory rate range: 2–150 rpm, accuracy ±1 rpm
• Power supply: DC 5.0 V
• Physical size and weight: 103 mm (L) × 69 mm (W) × 39 mm (H); 141 g

Ideal use scenarios

Whether you’re managing anesthesia, conducting Cardiac Pulmonary Cerebral Resuscitation (CPCR), or monitoring critically ill patients in the ICU or emergency department, this CO2 module cable provides:

• Real-time EtCO2 trends to guide ventilation adjustments
• Immediate InsCO2 visibility to detect inspired gas composition changes
• Continuous AwRR to detect hypoventilation or hyperventilation quickly
• Clear labeling and easy operation to minimize workflow disruption

Practical guidance for best results

To maximize reliability and protect equipment longevity:

• Always use a fresh disposable sampling tube and replace it after 30 minutes of use or between cases.
• Verify monitor interface version and select the matching cable to ensure proper fit and signal integrity.
• Store and handle the cable in a dry environment to prevent moisture ingestion and sensor degradation.
• During setup, confirm unit display mode (mmHg, kPa, or %) is configured to your hospital’s documentation standards.

Delivering precise capnography in a compact, compatible package, this ETCO2 capnograph module cable helps clinicians make informed, timely decisions—improving patient safety from the OR to the ICU and beyond.
