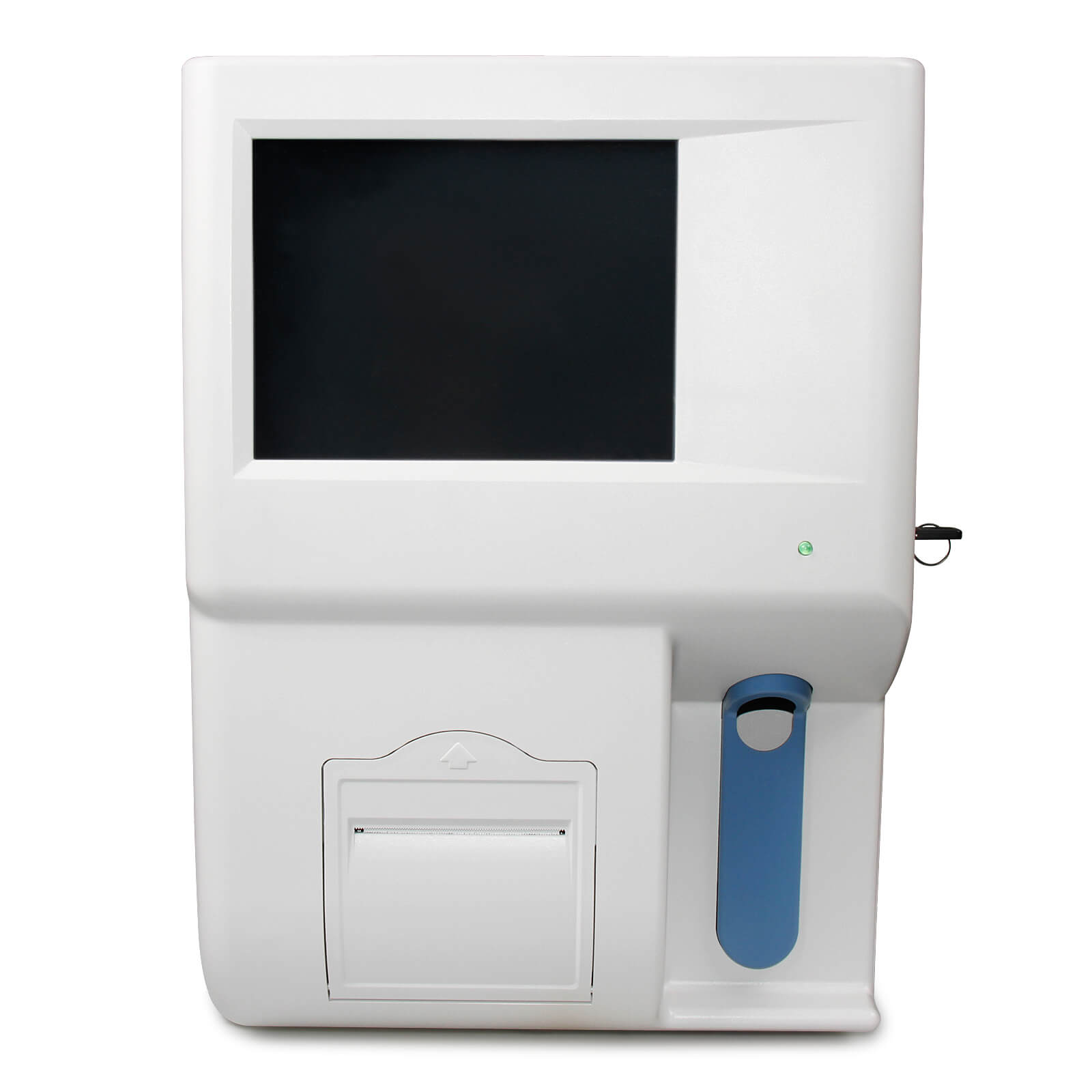

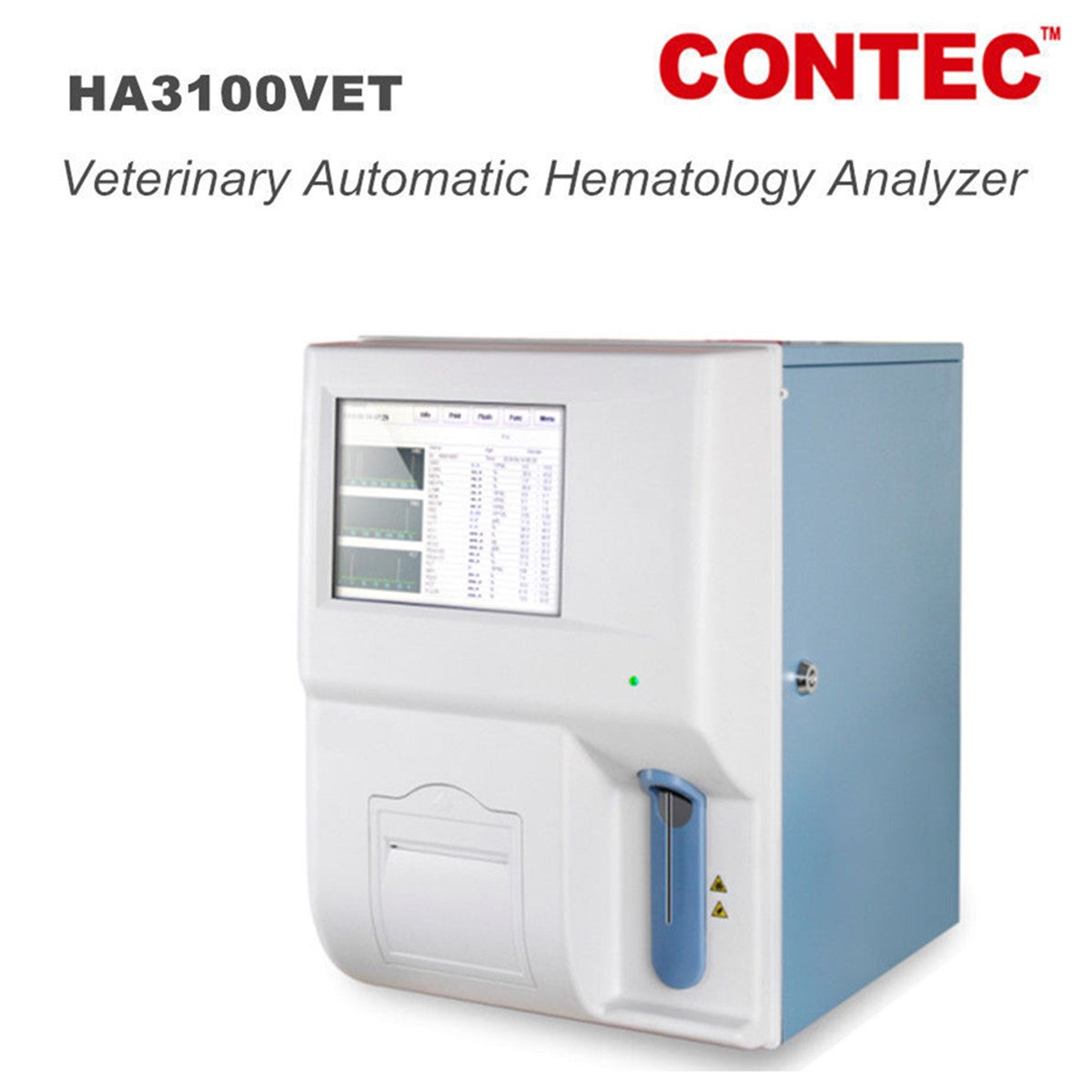

HA3100VET: Veterinary Automatic Hematology Analyzer with Touch Diagnostic System

HA3100VET combines robust hardware with intuitive software to deliver a dependable, easy-to-use hematology solution for veterinary clinics, hospitals, and laboratories. Designed to streamline workflows, this touch-based system provides fast, accurate blood counts with clear data communication options, helping teams reduce turnaround times and operational costs while maintaining high diagnostic confidence.

Why HA3100VET Stands Out

What makes HA3100VET different is its thoughtful balance of performance, usability, and practical data management tailored for veterinary practice. It doesn’t just spit out numbers—it gives you actionable insights with histograms and configurable workflows that fit real-world clinical scenarios. From busy multi-physician clinics to focused specialty labs, this analyzer is built to ease workloads without compromising accuracy.

Key Features and Practical Benefits

• Throughput you can rely on — up to 60 tests per hour for efficient triage during peak hours, ensuring timely decisions for urgent cases.
• 8-inch color touch screen — an intuitive, sitter-friendly interface that reduces training time and speeds up daily operation.
• 20 parameters + 3 histograms — comprehensive CBC profiling with clear visual histograms for WBC, RBC, and PLT to aid rapid interpretation.
• Three counting modes — adaptable to venous, capillary, or prediluted samples, enabling flexibility across sample types and workflow needs.
• 30,000 sample result storage with histograms — robust data retention for trend analysis, audits, and quality control across extended periods.
• Impedance-based cell counting and a cyanide-free HGB method — precise cell enumeration with safer, more environmentally friendly hemoglobin measurement.
• LIS and external printer support — seamless integration with your hospital information systems and printouts for patient records and case reviews.
• Manual and auto-calibration with 3-level QC and LJ graph — built-in quality control to maintain accuracy and traceability over time.
• Wide species coverage — canine, feline, equine, porcine, bovine, ovine, simian, murine, and more, catering to mixed-practice environments.
• Language flexibility — supports English, Spanish, Italian, Portuguese, and more, reducing language barriers in diverse teams.

What Problems It Solves for You

The HA3100VET is engineered to reduce guesswork and repeat testing by delivering reliable full blood counts with immediate context. Use it for:

• Rapid triage in emergency or sick-patient scenarios where time-to-result matters.
• Routine pre-surgical screening to catch hidden anomalies before anesthesia.
• Longitudinal patient monitoring with stored results and histograms to track trends over weeks or months.
• Multi-species clinics needing a single, adaptable analyzer for diverse caseloads.
• On-site data capture and printing for compliant record-keeping and referrals.

Performance and Technical Highlights

Principle: Impedance-based cell counting with a cyanide-free hemoglobin assay for safety and compliance.

Measured Parameters: WBC, Neu#, Lym#, Mid#, Neu%, Lym%, Mid%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR.

Histograms: WBC, RBC, PLT histograms for quick visual assessment of distribution and potential abnormalities.

Sample Volume: Venous mode 10 µL; Capillary mode 10 µL; Prediluted mode 20 µL capillary blood — enabling flexibility with minimal sample requirements.

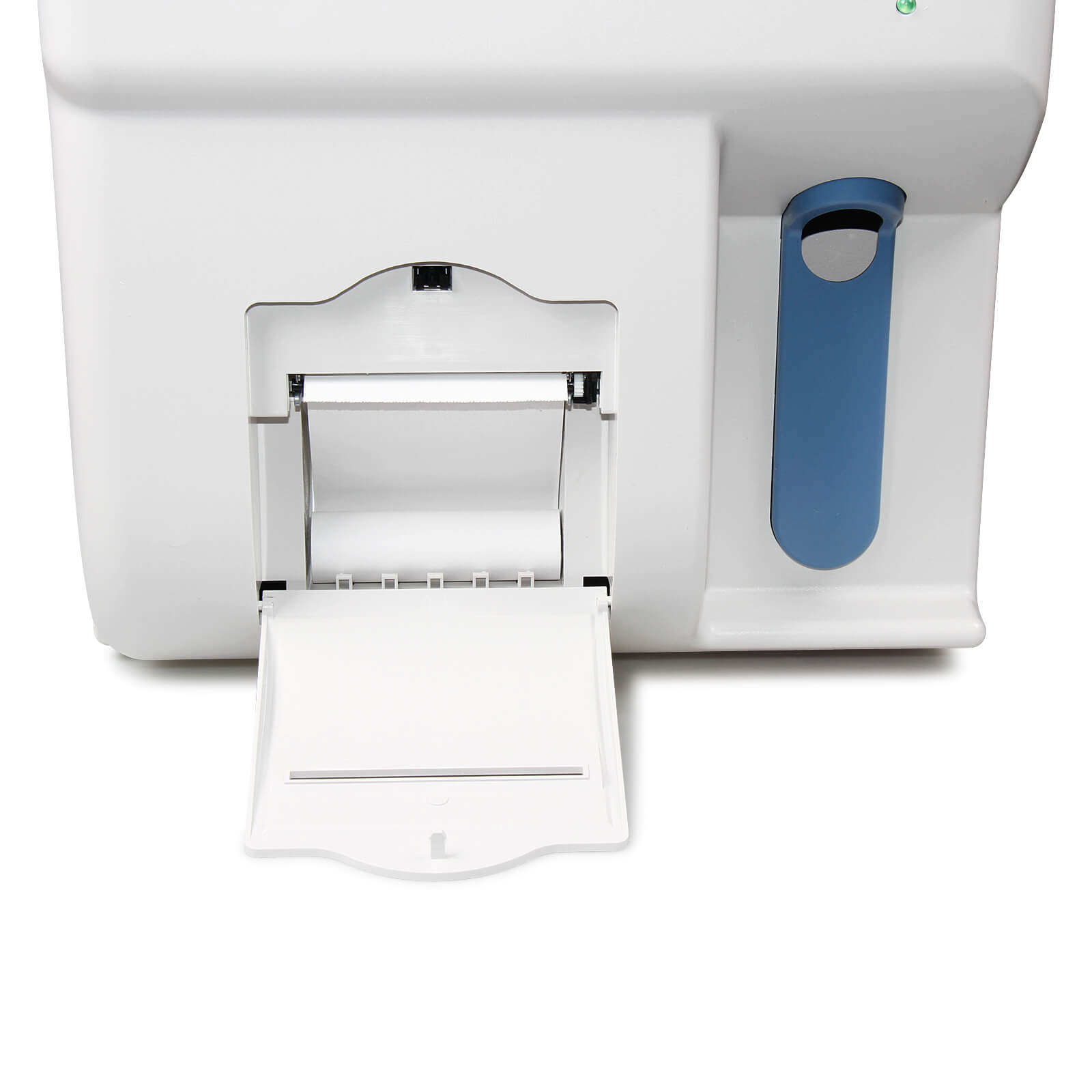

Storage and Printout: 30,000 results with histograms; thermal printer with optional external printer support.

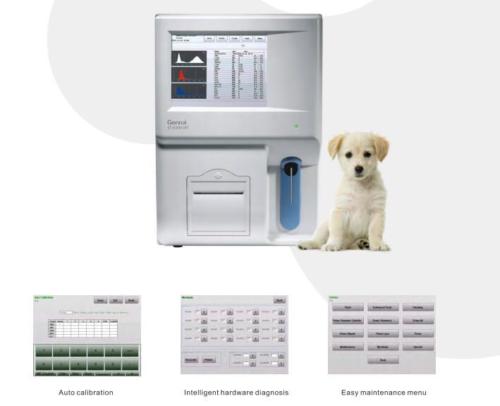

Calibration and QC: Manual and auto-calibration; 3-level QC with LJ graph for ongoing accuracy checks.

Display and Build: 8-inch color LCD, 800×600 resolution; compact footprint (433 mm L × 300 mm W × 430 mm H).

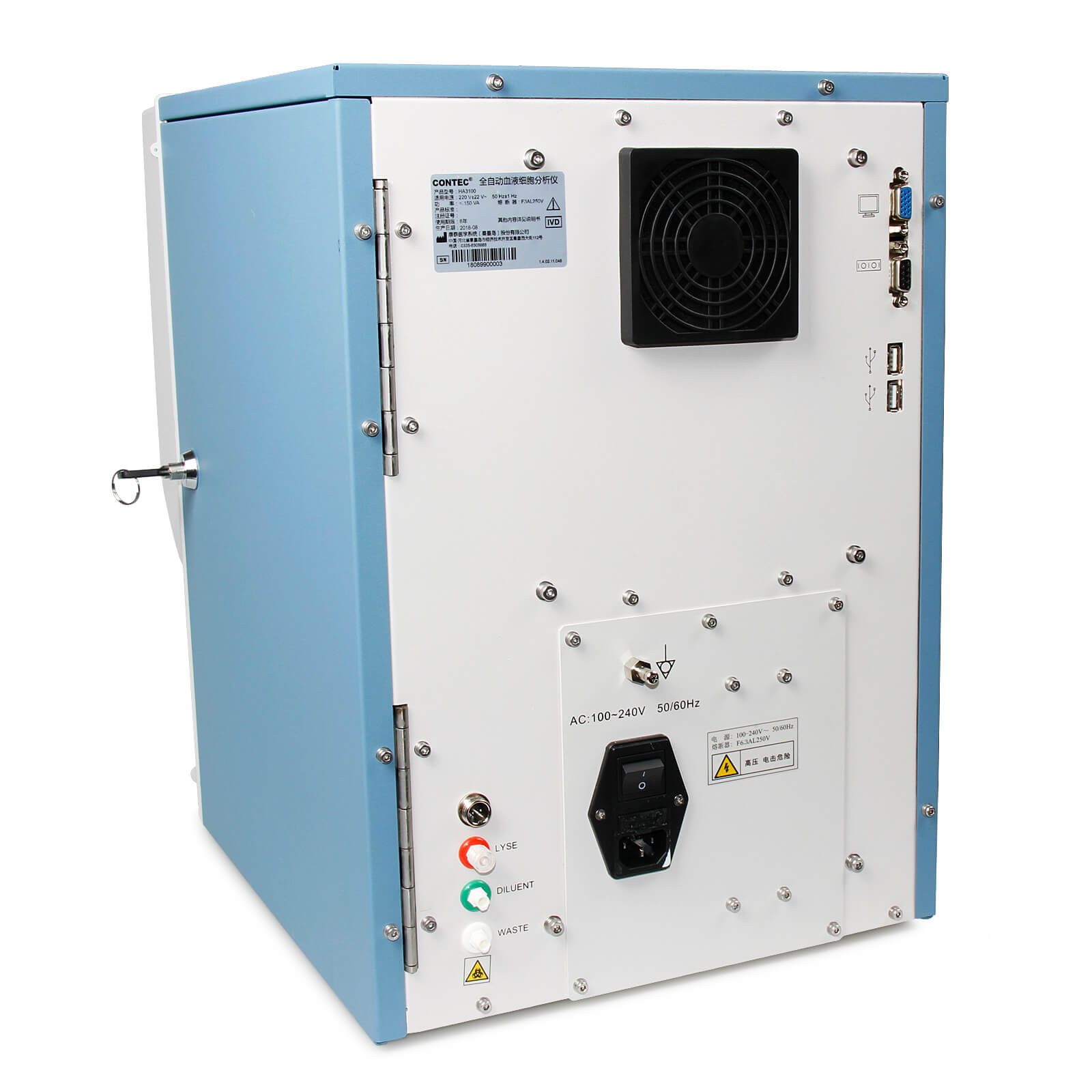

Environmental and Power: Operating range 15°C–35°C; Power supply AC 100–240V, 50/60 Hz, suitable for global clinics.

Range and Precision: WBC (0–99.9×10^9/L) with CV ≤ 2.0% (7.0–15.0×10^9/L), RBC (0–9.99×10^12/L) with CV ≤ 1.9%, HGB (0–300 g/L) with CV ≤ 1.9%, MCV (80–110 fL) CV ≤ 0.4%, PLT (0–999×10^9/L) CV ≤ 4.0%.

Ideal Users and Use Scenarios

• Ideal for: small animal clinics, mixed-practice hospitals, mobile veterinary units, veterinary teaching hospitals, and research labs requiring dependable CBC results across species.
• Use cases: pre- and post-operative checks, infectious disease screening, anemia workups, dehydration assessment, stress leukograms in horses, and routine wellness panels in dogs and cats.

How It Compares and Why It Matters

Compared to stand-alone multi-parameter analyzers, HA3100VET emphasizes veterinary-focused workflow. Its safety-forward hemoglobin method, extensive histograms, and flexible sampling modes translate to fewer reruns, faster decision-making, and richer data for case discussions. The LIS compatibility and external printing streamline record-keeping, enabling seamless adoption into busy clinics without overhauling existing IT infrastructure.

Usage Tips and Best Practices

• Leverage the 8-inch touch interface to quickly navigate patient records and run repeat panels when monitoring chronic conditions.
• Use prediluted mode for small-volume samples from fragile patients to minimize repeat draws without compromising accuracy.
• Regularly run the 3-level QC and review the LJ graph to detect drift early and maintain confidence in patient results.
• Take advantage of histograms to spot subtle shifts in cell populations that may precede overt clinical signs.
• Store and compare results over time to identify trends in therapeutic responses or disease progression.

Shipping and Availability

This device ships from China, designed to bring veterinary hematology capabilities to clinics worldwide with scalable support and service options.
