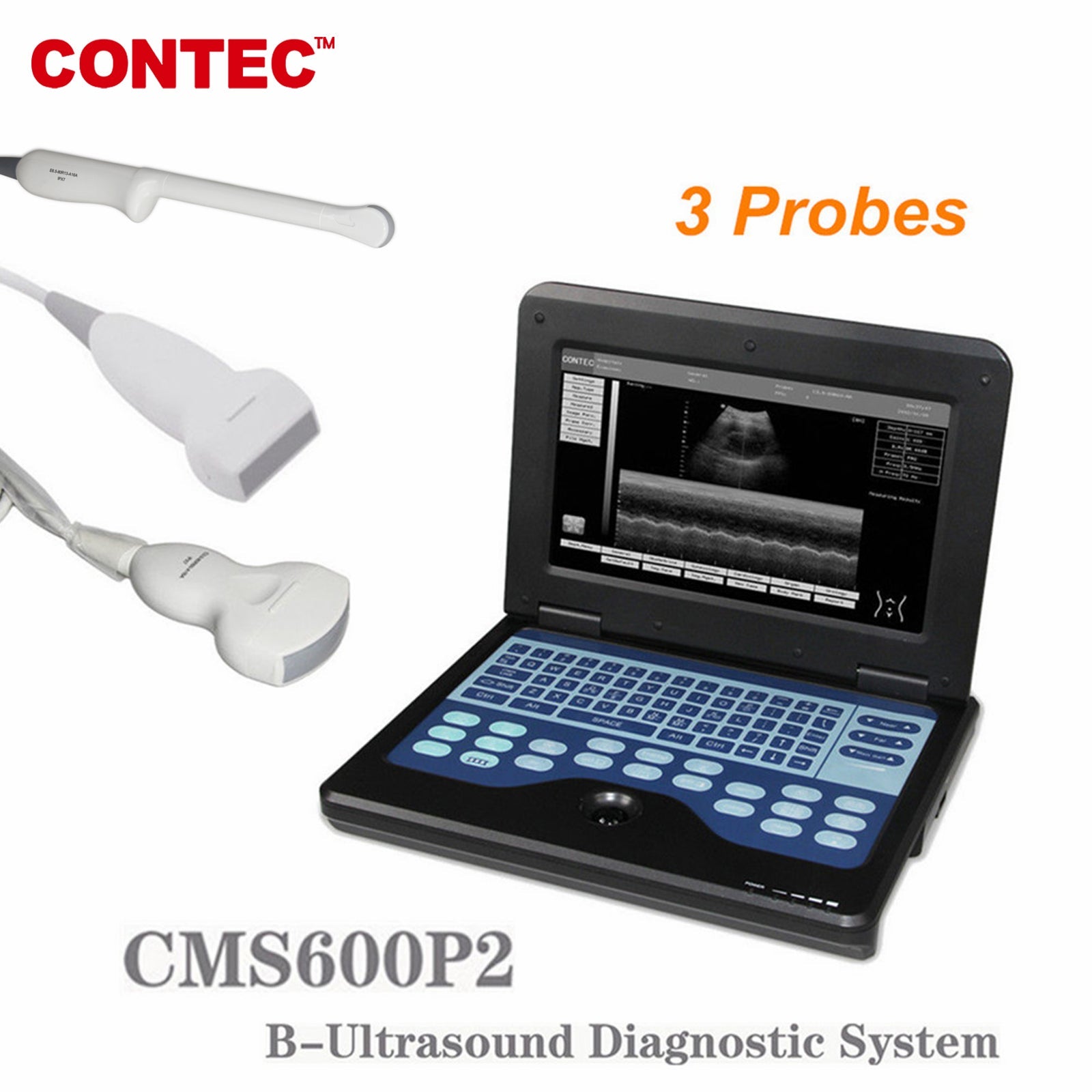

CMS600P2 Portable Digital Ultrasound Scanner with Convex, Linear, and Transvaginal Probes

The CMS600P2 is a notebook-style, full-digital B-ultrasound diagnostic system designed to bring hospital-grade imaging to your bedside. With an embedded Linux operating system, this portable ultrasound scanner delivers stable performance, flexible expansion, and a compact form factor that fits seamlessly into busy clinics and ward rounds without sacrificing image quality or workflow efficiency.

Why CMS600P2 Stands Out

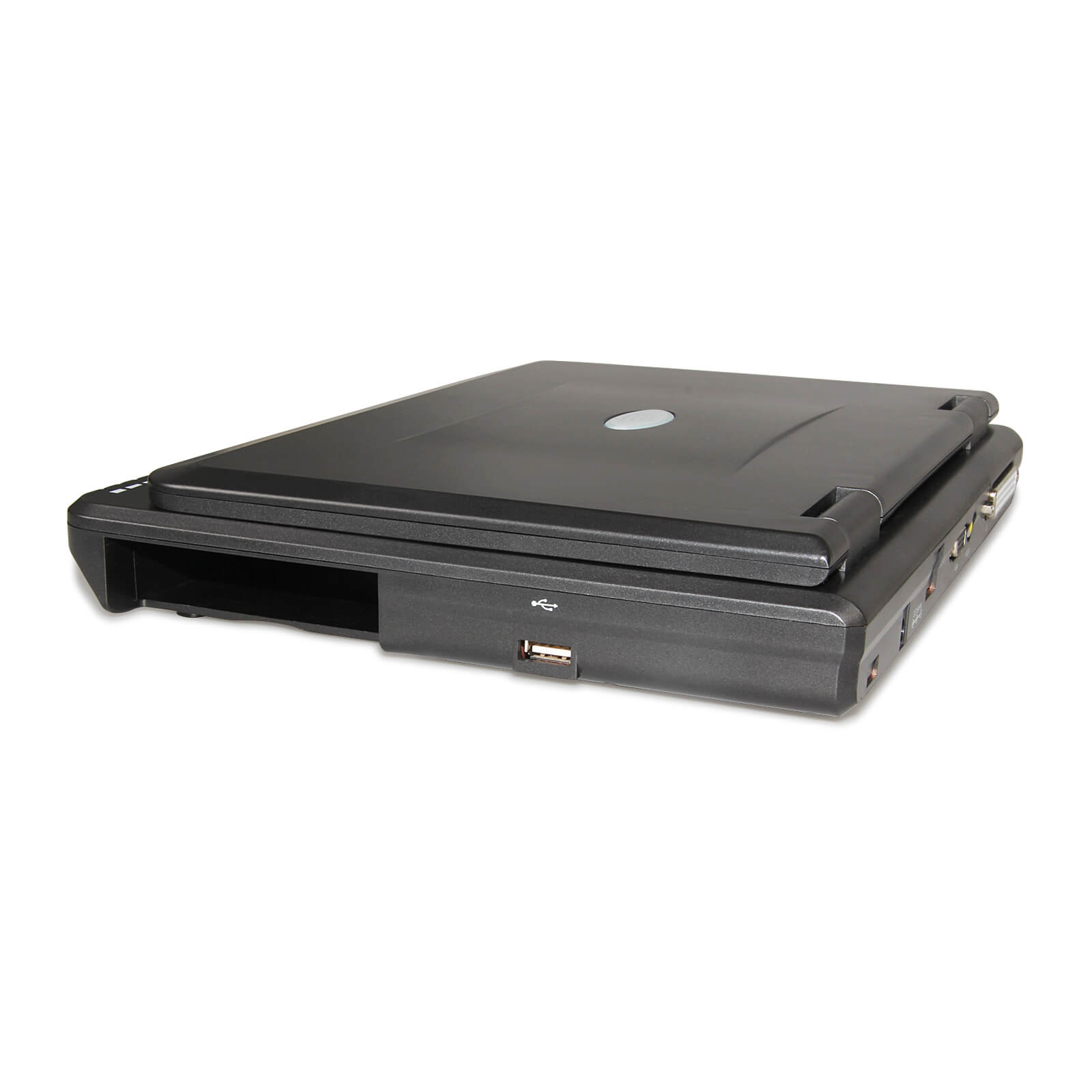

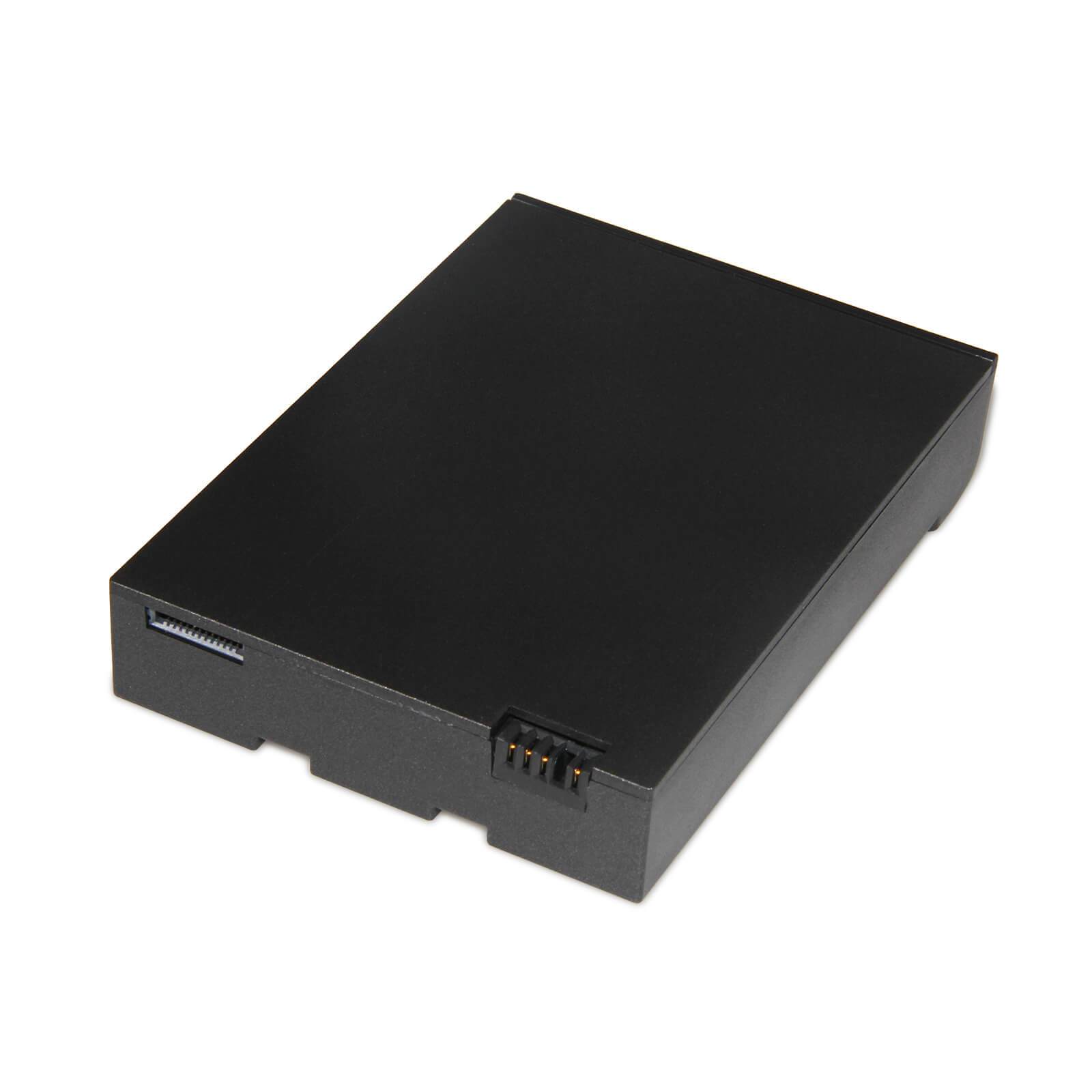

• Notebook-grade portability: built-in battery, integrated unit, and a slim profile that enables quick, on-the-go examinations across departments.
• Advanced digital imaging: full digital beam-forming, real-time dynamic aperture, dynamic receive apodization, real-time receive focusing, and frame correlation for consistently crisp, diagnostic-quality images.
• Efficient workflow: touch-folding keyboard, shortcut trackball, and pop-up menus that speed measurements and reduce exam time.
• Comprehensive reporting and image management: neat, convenient tools to print, export, and manage studies directly from the device or via USB memory.
• Broad clinical coverage: rich measuring software packages for obstetrics, gynecology, cardiology, urology, and small parts, with support for multiple probes to match the exam.
• Specialized interventional support: integrated puncture guide and histogram tools to aid precise procedures.

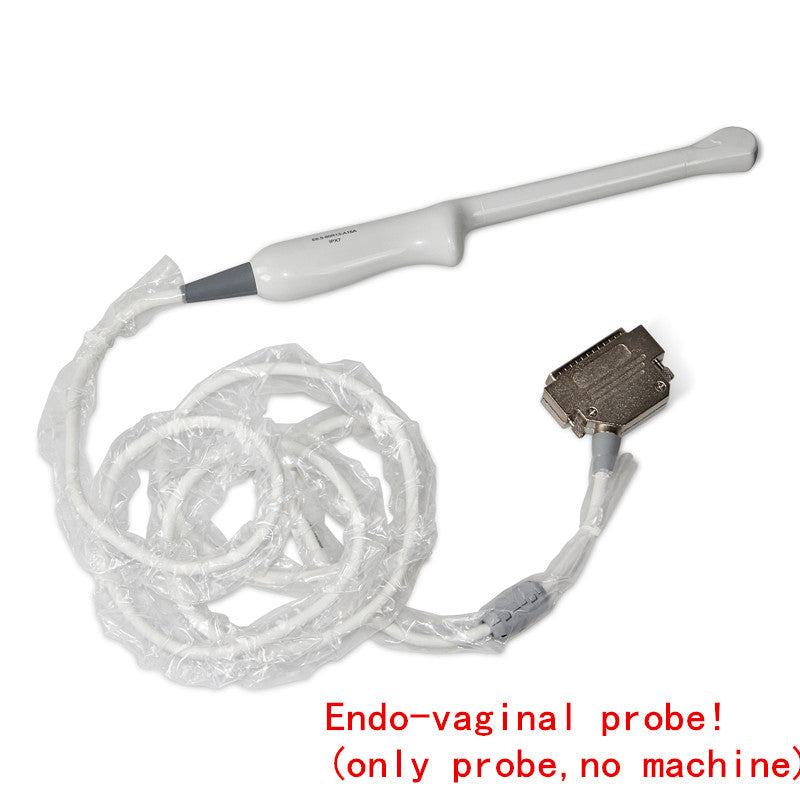

• Flexible probe compatibility: standard convex, linear, and transvaginal probe options (with broad expansion to accommodate other probe types) for a wide array of applications.

Probes, Versatility, and Exam Scenarios

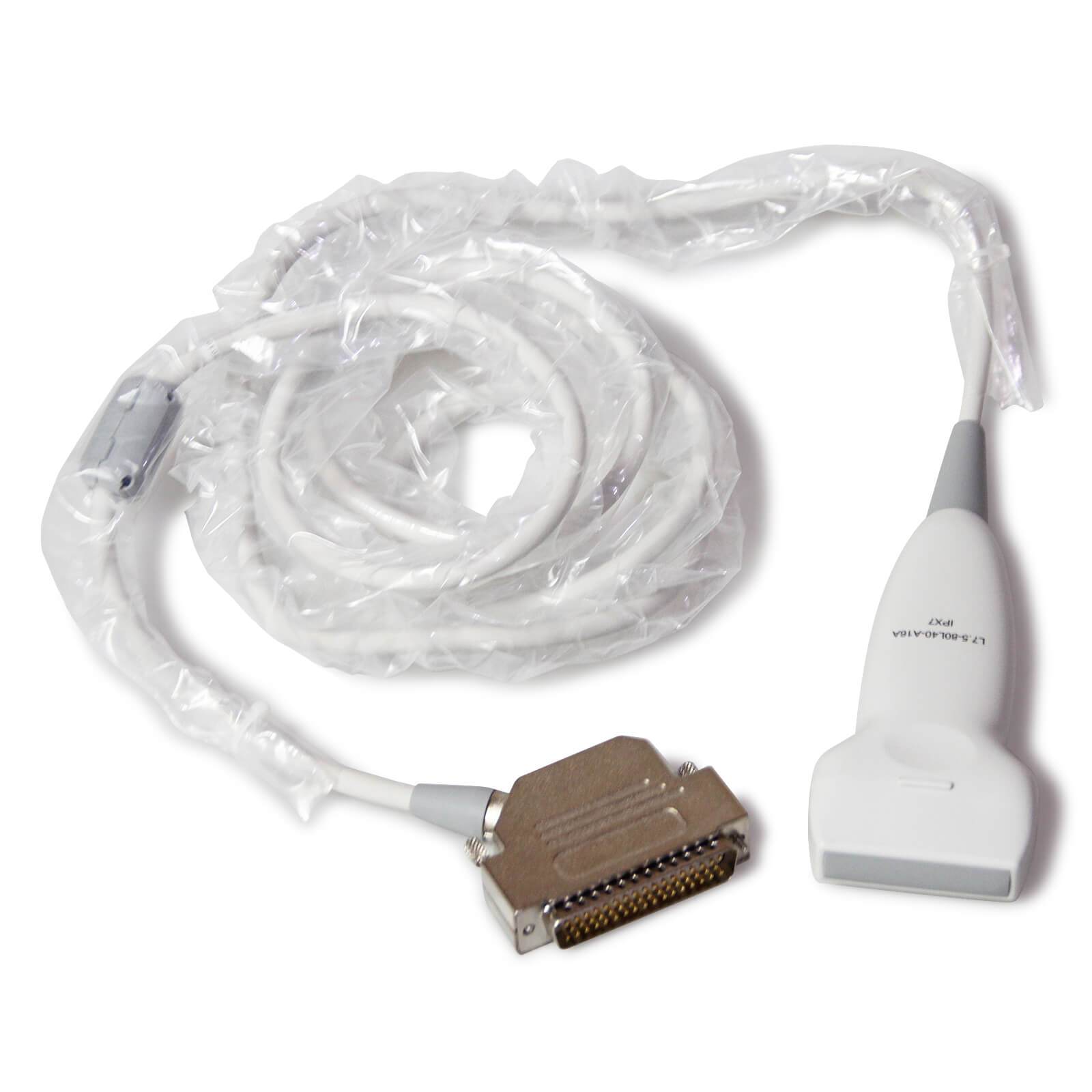

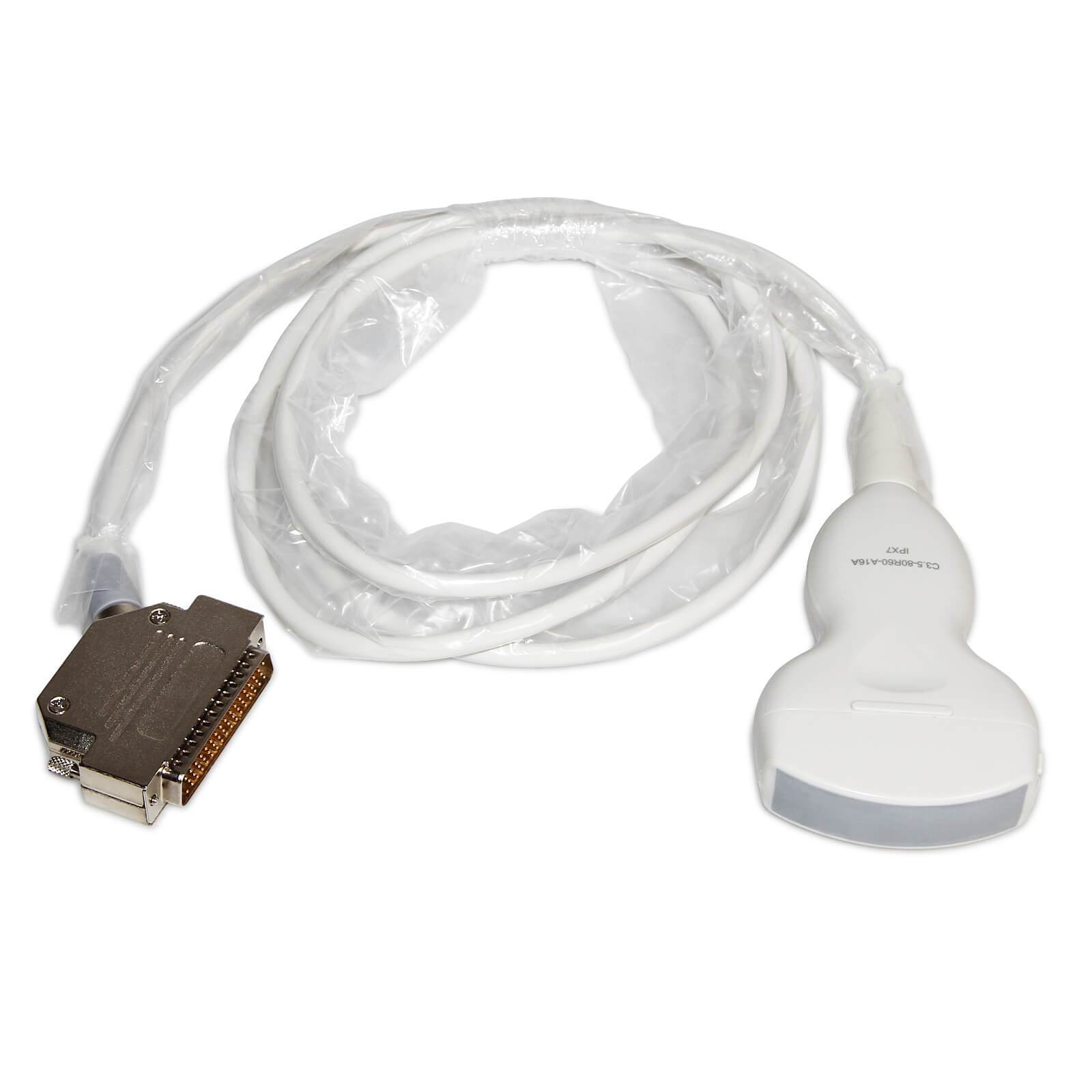

Standard configuration includes a 3.5 MHz convex probe (2.0–5.0 MHz) for abdominal imaging and a 7.5 MHz linear probe (5.0–10.0 MHz) for superficial structures and vascular assessment. The CMS600P2 is engineered for probe versatility, including transvaginal options, enabling comprehensive prenatal and gynecologic evaluations alongside routine abdominal, cardiac, urinary, and small-part scans. This flexibility makes it an ideal solution for clinics that require one device to cover multiple specialty pathways.

Imaging Capabilities That Matter in Daily Practice

• Imaging modes: B, 2B, 4B, B/M, and M to characterize anatomy and function across exams.
• Tissue harmonic imaging for improved contrast and tissue differentiation in challenging patients.

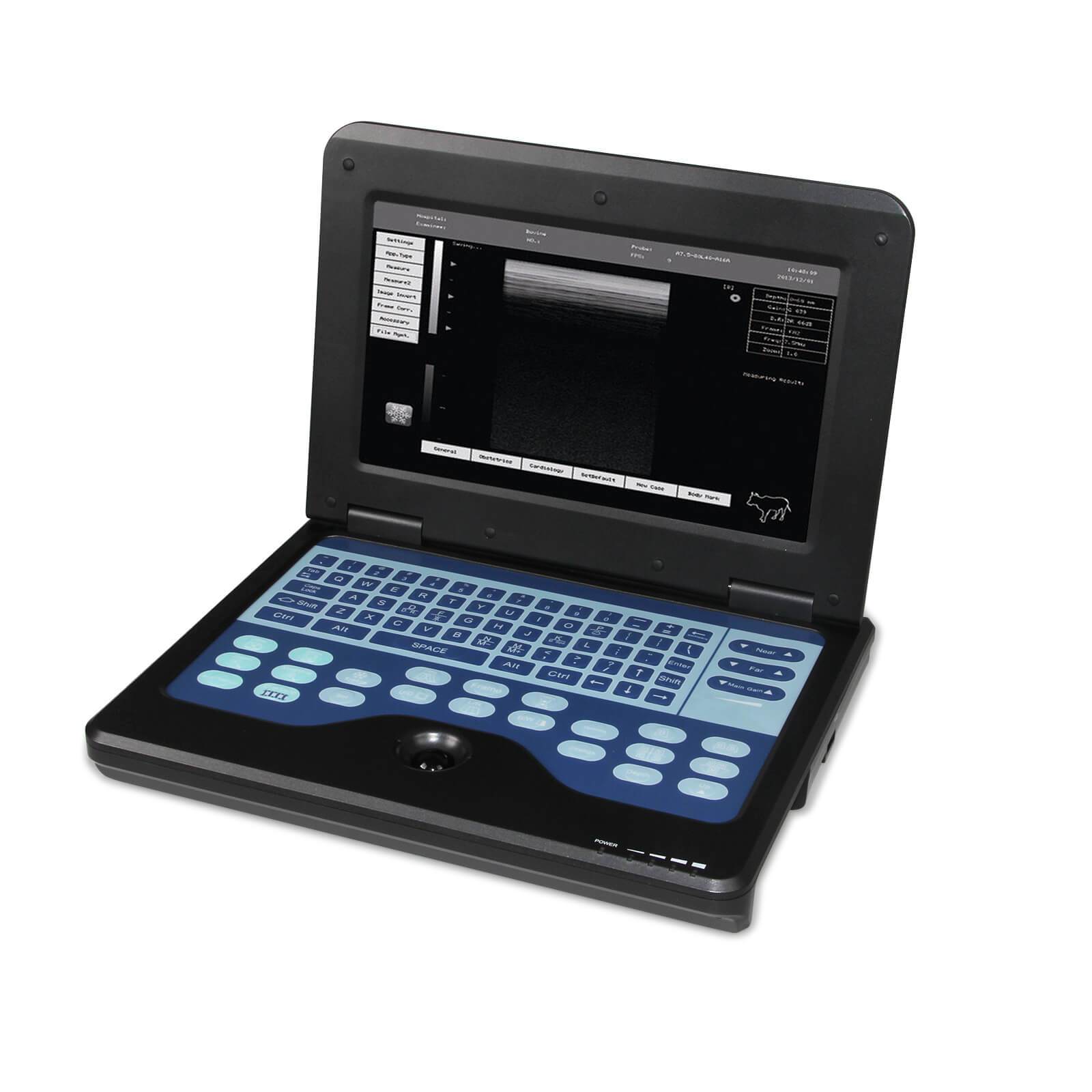

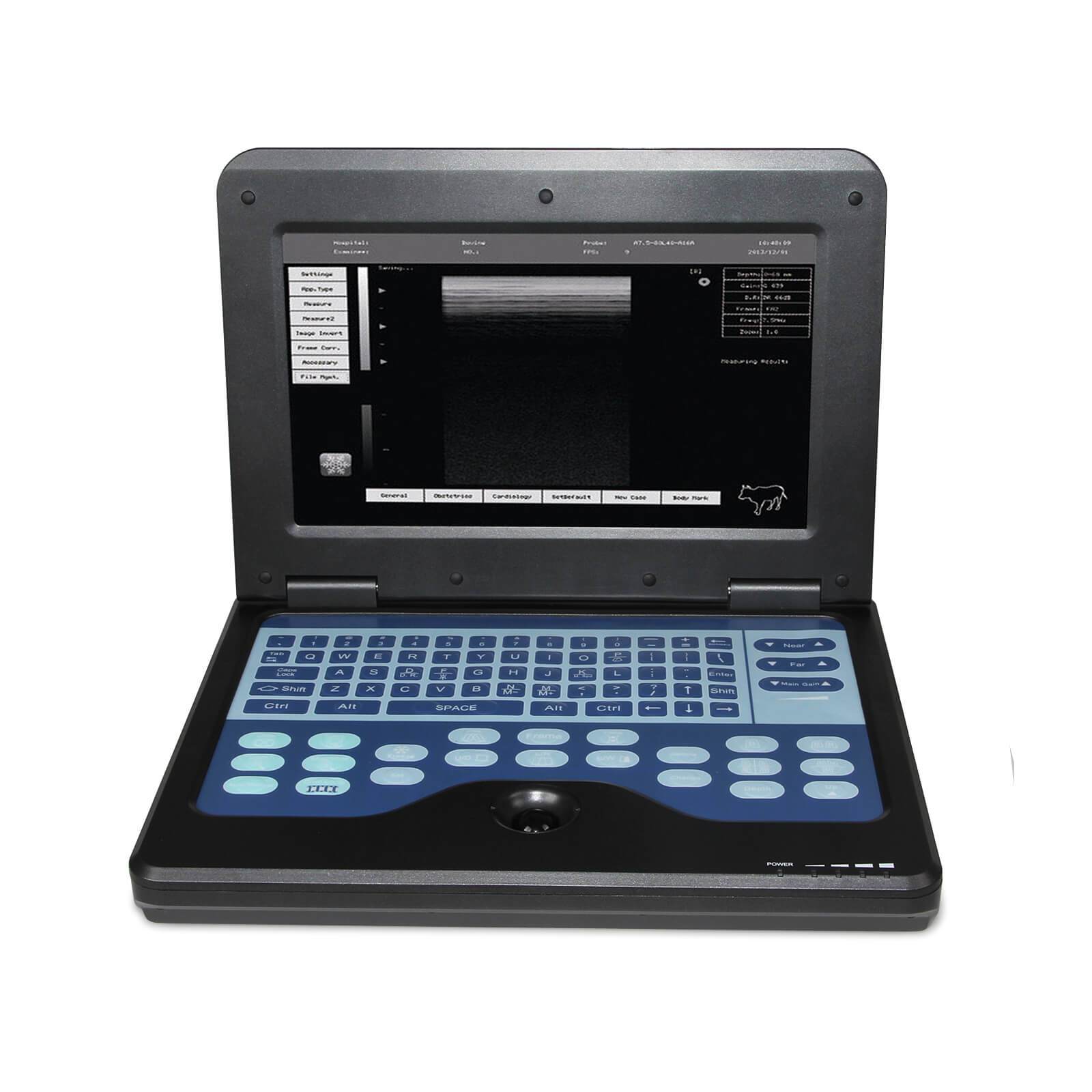

• Display and resolution: 10.1" TFT LCD with 1024×600 resolution and 256-level grayscale for nuanced imaging.
• Resolution and depth: axial near 2 mm / far 2 mm; lateral near 2 mm / far 4 mm; depth up to 240 mm; shallow dead zone ≤ 3 mm.
• Dynamic data handling: cine loop of 600 frames and up to 2048 image storage frames for thorough review and comparison.
• Gain control: near, far, and total gain adjustable independently for precise optimization of every image.
• Flexible image processing: gamma correction, histogram adjustments, and easy image conversion (up/down, left/right, grayscale).
• Measurement toolbox: distance, circumference, area, volume, angle, ratio, slope, and more—configurable by clinical context and language.
• Language and accessibility: interface and input available in Chinese and English to support diverse clinical teams.

Why Clinicians Choose CMS600P2

For clinics that demand high-quality diagnostic imaging on the move, the CMS600P2 delivers a potent combination of portability, depth, and practicality. Its notebook form factor, long-lasting battery, and robust software ecosystem empower physicians to perform comprehensive exams at the patient’s side, speeding diagnosis and improving patient care in outpatient settings, wards, and field environments alike.

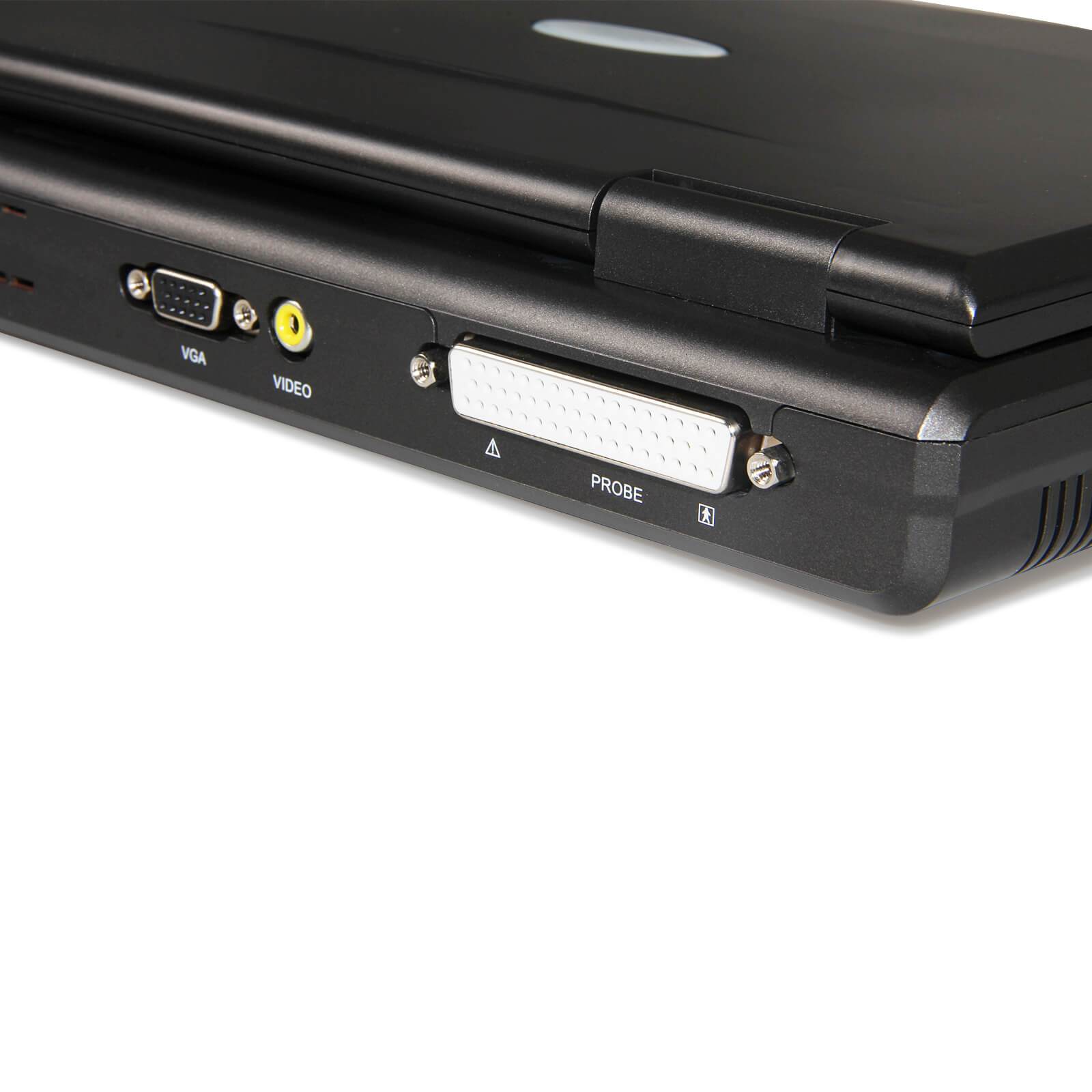

Connectivity, Memory, and Data Management

Manage and archive studies effortlessly with built-in external memory and USB storage. Print or export reports directly to video printers, inkjet printers, or laser printers, ensuring smooth integration with electronic medical records. The device supports multilingual reporting to facilitate collaboration across teams and patients.

Technical Snapshot

Display: 10.1" TFT LCD, 1024×600, 256 grayscale

Imaging Modes: B, 2B, 4B, B/M, M; tissue harmonic imaging

Resolutions: Axial near 2 mm; axial far 2 mm; lateral near 2 mm; lateral far 4 mm; depth up to 240 mm; dead zone ≤ 3 mm

Storage: Cine loop 600 frames; image storage 2048 frames

Gains: Independent near, far, and total gain adjustments

Probes Included: Convex 3.5 MHz (2.0–5.0 MHz); Linear 7.5 MHz (5.0–10.0 MHz); supports additional probes including transvaginal
