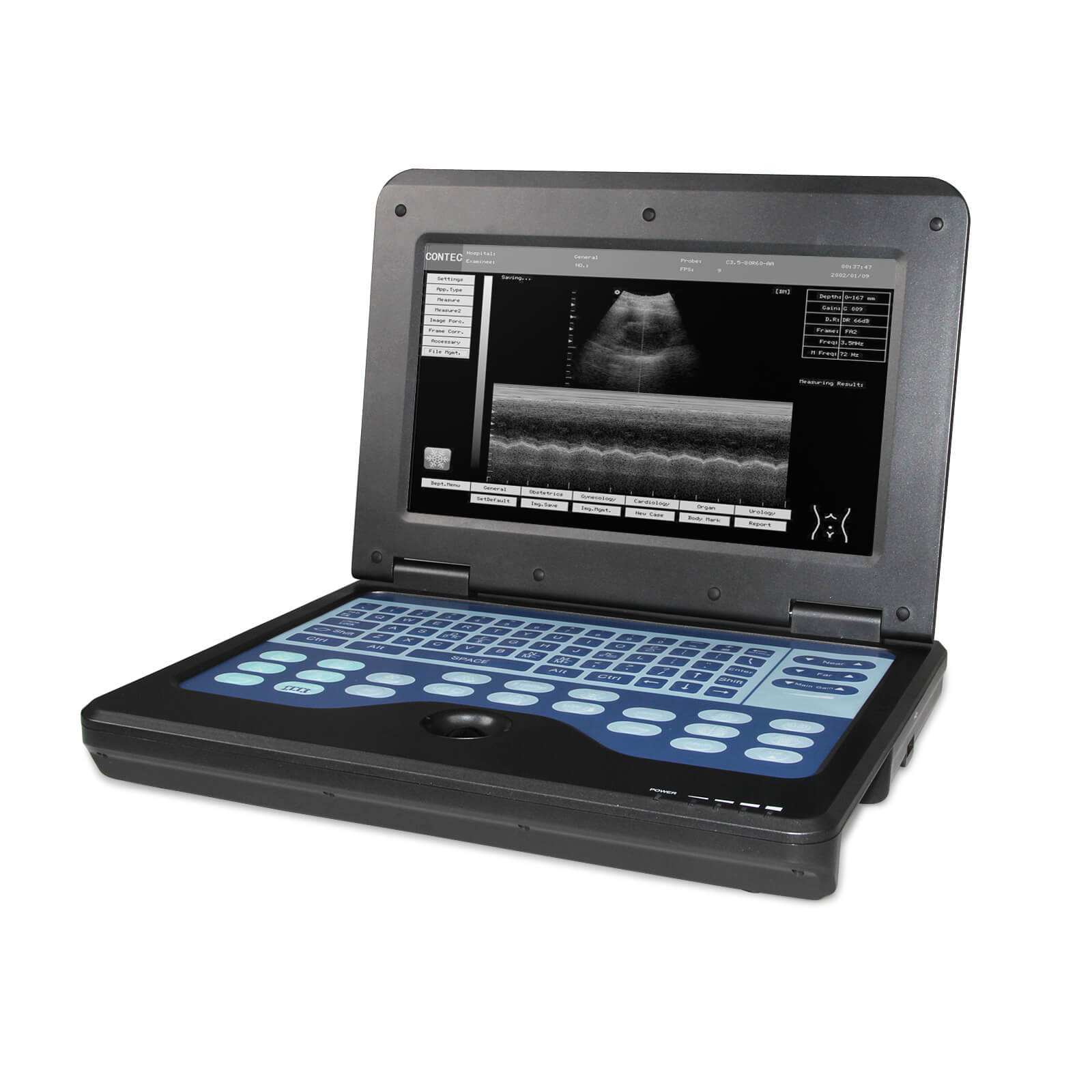

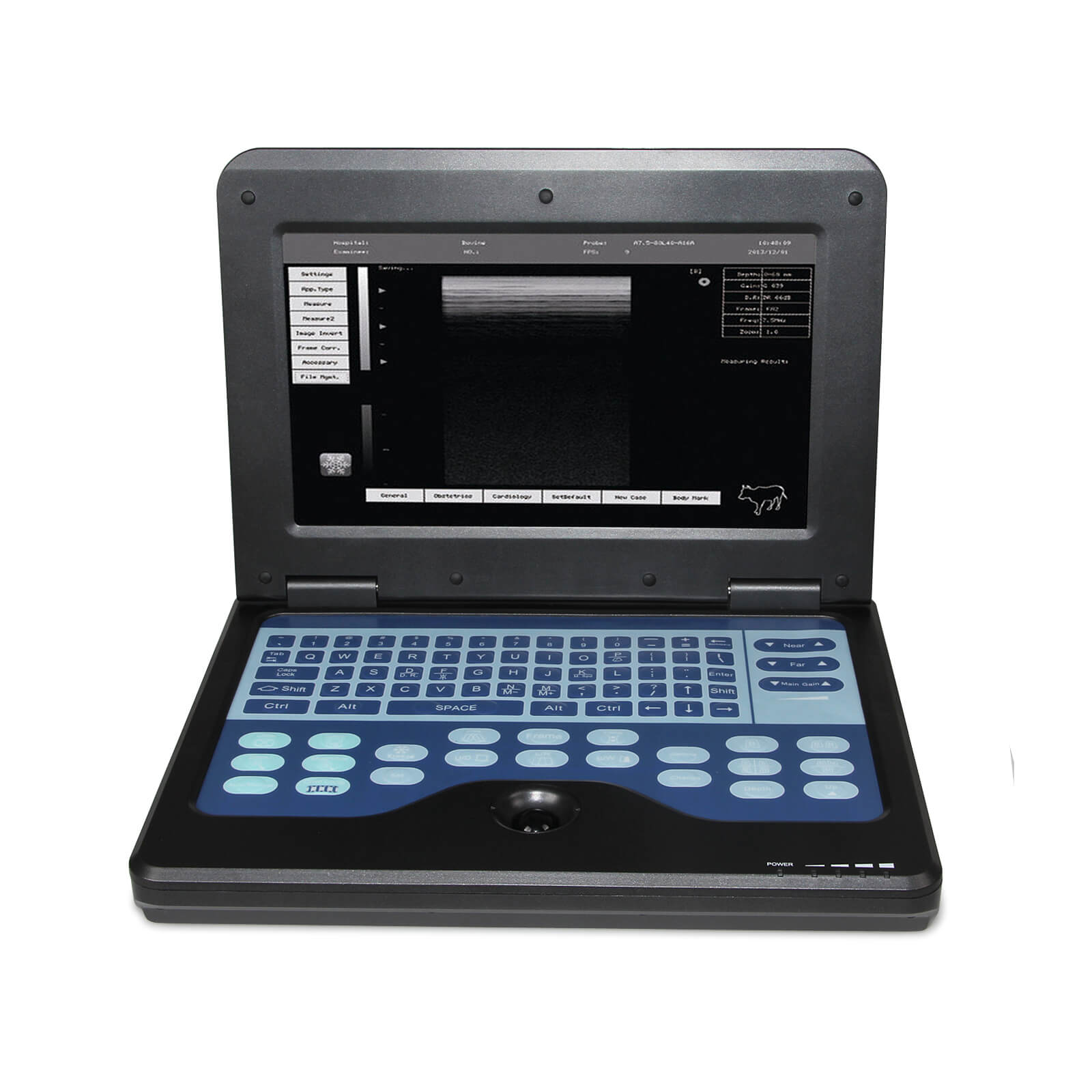

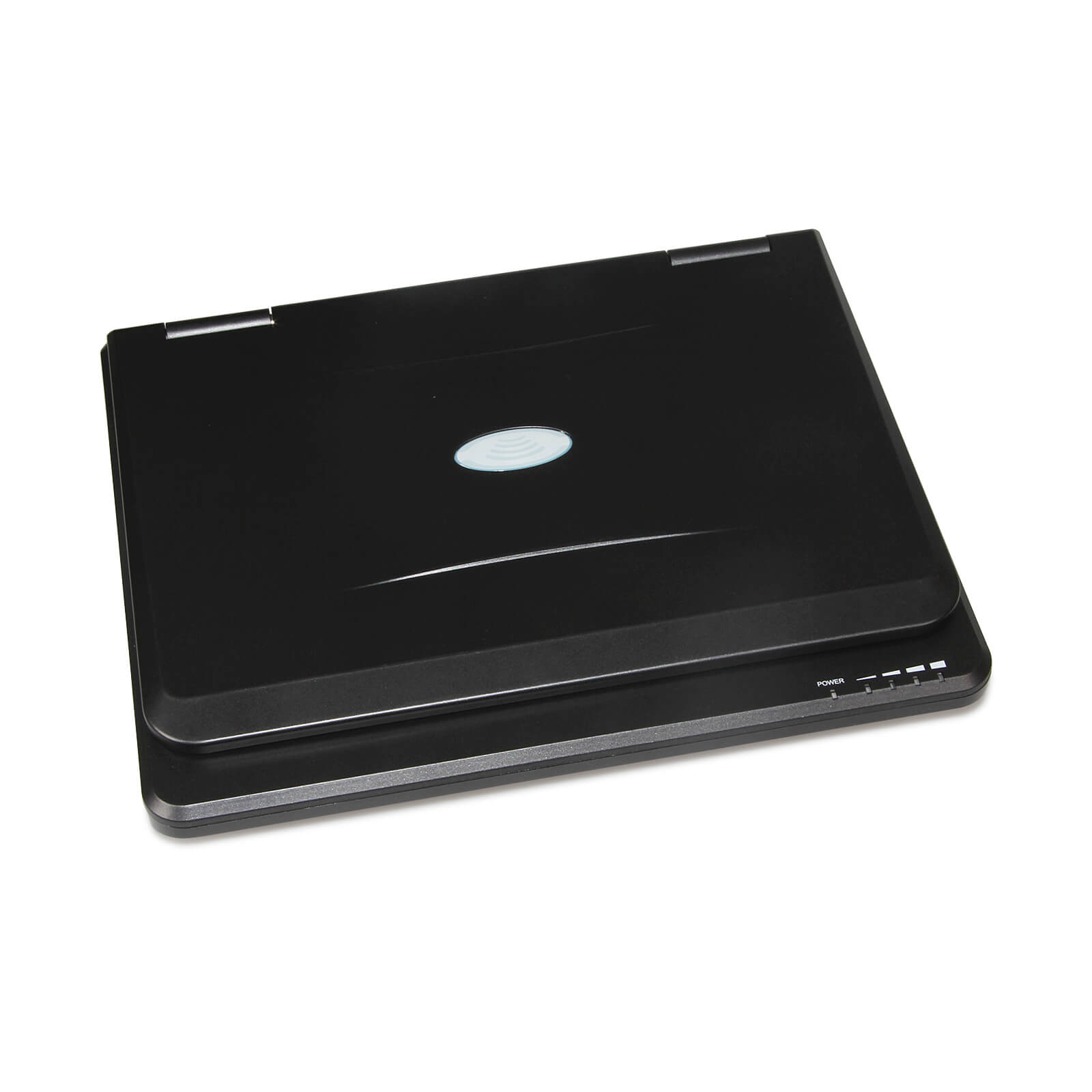

Contec CMS600P2 Portable Laptop Digital Ultrasound Scanner with 3.5 Convex Probe

The Contec CMS600P2 is a true notebook-style ultrasound system that brings full digital imaging to your fingertips. Built on a Linux embedded operating system, this portable ultrasound scanner delivers fast data processing, intuitive touch-assisted controls, and a compact, battery-powered design that’s ideal for point-of-care diagnostics, clinics, and fieldwork.

Why this portable ultrasound stands apart

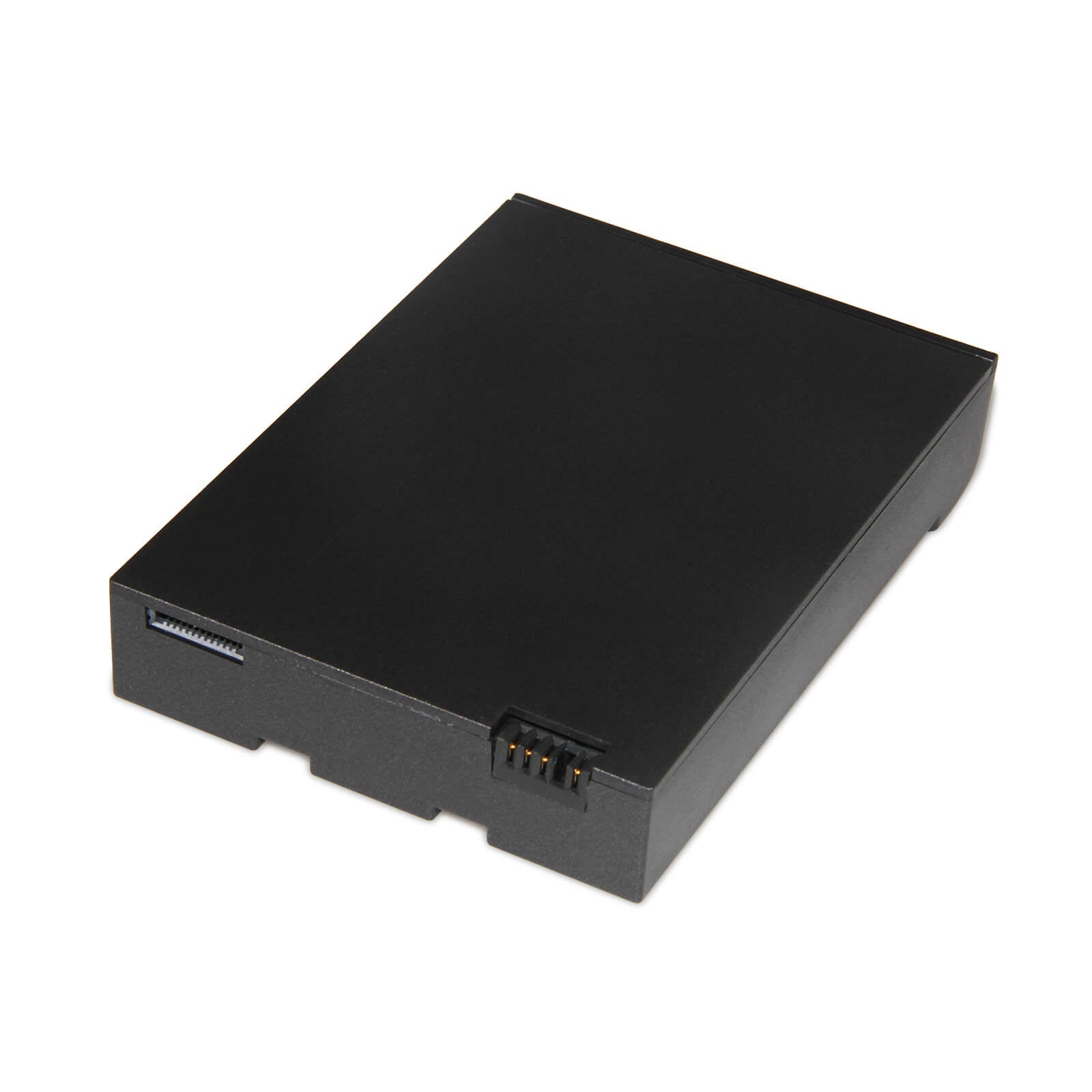

• Notebook‑style portability with built‑in battery — a compact, lightweight unit that travels easily between exam rooms without sacrificing power or performance.
• Advanced full digital beam forming and real‑time features (dynamic aperture, receiving apodization, and focusing) that yield sharper, more consistent images across a range of clinical scenarios.
• Rich, exam-ready software packages for obstetrics, gynecology, cardiology, urology, and small parts, enabling comprehensive assessments in one device.
• Flexible imaging modes and high-contrast rendering with B, 2B, 4B, B/M, and M modes, plus 256-level grayscale for nuanced tissue differentiation.
• Puncture guidance and histogram tools that support accurate procedures and data-driven decisions at the bedside.
• Extensive connectivity including USB storage, external printers (video/inkjet/laser), and a 10.1-inch TFT LCD for clear, viewable images in small spaces.
• Automatic report generation for obstetrics, gynecology, cardiology, and other applications, with flexible measurement formulas (distance, circumference, area, volume, angle, ratio, slope, etc.).
• Multilingual interface supports Chinese and English for a wide range of users, with an easy-to-navigate management interface and customizable measurement settings.

What you can do with CMS600P2

Designed for clinicians who need reliable imaging on the move, this system excels in:

• Prenatal and obstetric examinations (fetal measurements, growth tracking, amniotic fluid assessment).
• Gynecologic imaging for follicular tracking, uterine evaluation, and post‑partum checks.
• Cardiac, vascular, and small-part assessments where rapid, accurate imaging matters most.
• Urology and abdominal scans where portability accelerates diagnosis in clinics or outreach settings.
• Procedural guidance with integrated puncture tools and real-time measurement capture for documentation and planning.

Key specifications at a glance

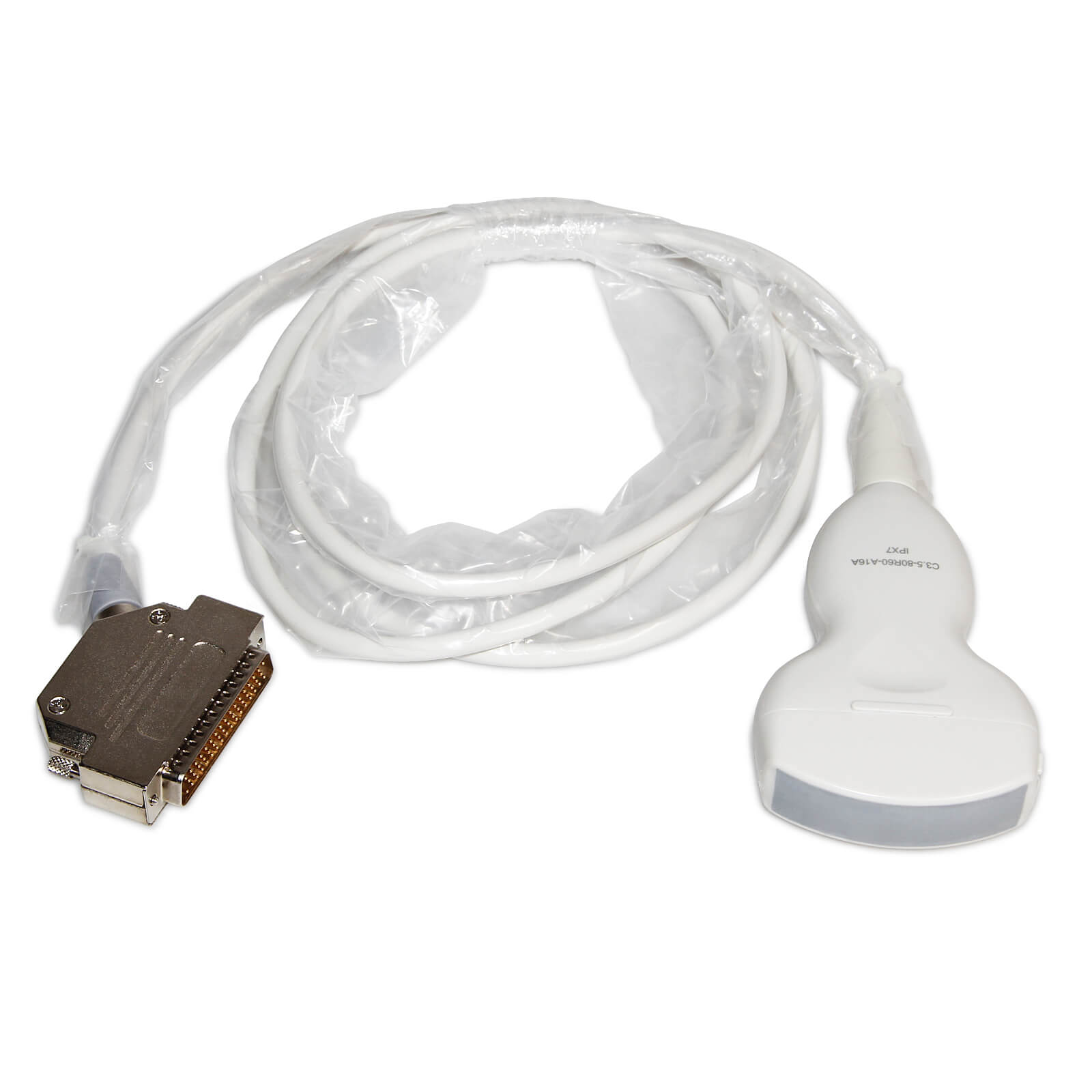

• 3.5 MHz convex probe (standard); 2.0 MHz–5.0 MHz operating range
• Display: 10.1-inch TFT LCD; grayscale 256 levels; multiple display modes (B, 2B, 4B, B/M, M)
• Imaging features: Real-time dynamic aperture, dynamic receive apodization and focusing, frame correlation, tissue harmonic imaging, gamma correction, histogram, and image flip (up/down, left/right)
• Measurement and reporting: Distance, circumference, area, volume, angle, ratio, slope; automatic generation of obstetrics, gynecology, cardiology, and other reports
• Workflow tools: Built-in puncture guide, quick‑access shortcuts via touch keyboard and trackball, easy image management, and print/export capabilities
• Language and interface: Chinese and English interface and input; configurable measurement formulas

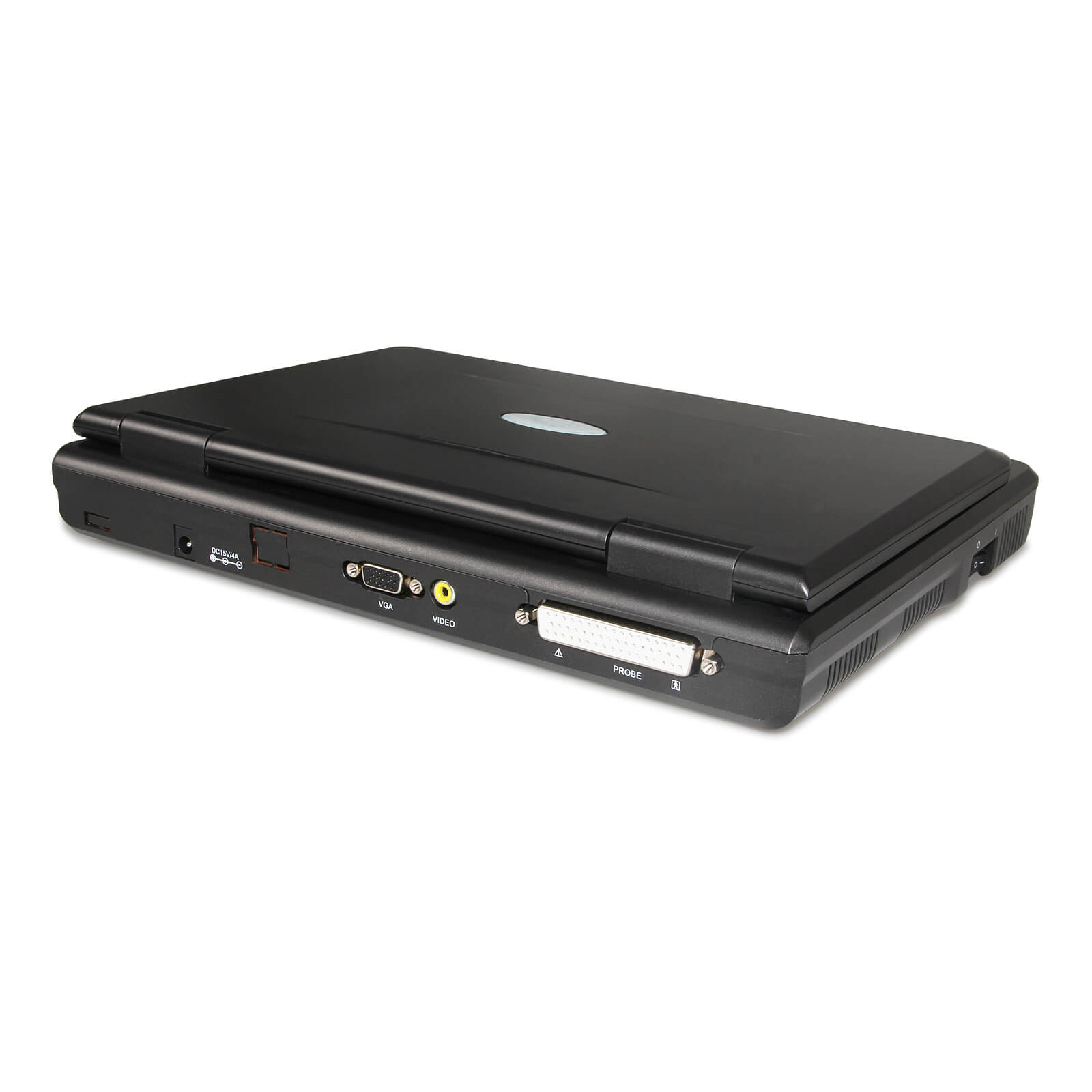

• Memory and connectivity: External memory support; USB storage; compatible with video, VGA, and USB printers
• Physical specs: 292 mm x 232 mm x 45 mm; weight 2.3 kg (including probe)

Who is this ideal for?

The CMS600P2 is crafted for clinics, clinics-on-the-go, small hospitals, and outreach programs where space and power are at a premium but high-quality ultrasound remains essential. It’s particularly valuable for:

• Sonographers and physicians who need quick bedside imaging without a full cart system
• Rural or field clinics requiring reliable portable diagnostics
• Multidisciplinary teams that benefit from a single device covering obstetrics, gynecology, cardiology, urology, and small parts
• Hospitals seeking a compact backup system that pairs with standard printers and USB storage for fast reporting

Practical tips and insights

To get the most from CMS600P2, consider pairing the device with regular maintenance of the embedded Linux system, keeping software up to date via USB updates, and leveraging the automatic report generation to streamline patient documentation. The combination of high-quality imaging, flexible scanning modes, and extensive measurement tools helps you deliver clearer diagnoses faster, even in space-constrained environments.

Shipping and availability

Available for shipping from a USA warehouse to international destinations, with additional logistics managed from China as needed. This setup supports faster delivery to the US and reliable international fulfillment for broader reach.

Note: The CMS600P2 includes a 3.5 MHz convex probe as standard and offers a robust feature set designed to maximize diagnostic confidence across a wide range of clinical scenarios.
